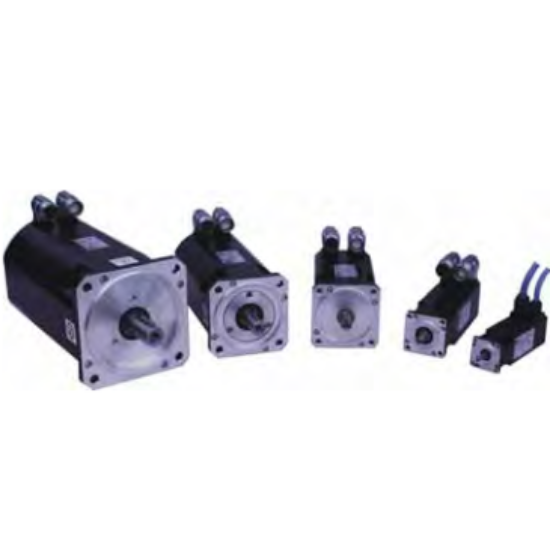

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ACM2N0150-4/1-6

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU ACM2N0150-4/1-6

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Static Torque	10,00 Nm
Inductance	16.70 mH	Static Current	2.70 A
Rated Current	1.90 A	Series	ACM2N
Rated Power	0,628 kW	Resistance	5.20 Ohm
Rated Speed	4000 min-1	Torque Constant	0.94 Nm/A
Voltage	400 VAC	Motor	Servo
Motor Thermal Time Constant	23 min	Rated Torque	1,50 Nm
Static Torque	2.50 Nm
