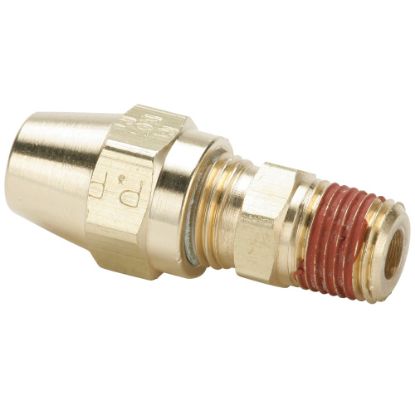

Air Brake D.O.T. compression style fittings, AB
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Being the world's leader in leak free technologies Parker's air brake - AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. AB fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with copper air brake tubing or the following Parker Parflex Division tubing.
• 1120 Nylon Air Brake Tubing (with a tube support)
• 1320 Quantum Elastomeric Air Brake Tubing (with a tube support)
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Meets D.O.T. FMVSS571.106 performance
• Meets functional requirements of SAE J246
• All brass air brake fitting
• Reusable
• Use with copper tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Copper air brake lines
• Coolant lines
• Fuel lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Connection 2 Thread Size (inch) | Style | Connection 1 Style | Shape | Connection 2 Style | Maximum Operating Pressure | Maximum Operating Temperature | Sleeve Material | Tube Material | Minimum Operating Temperature | Nut Material | Specifications Met | Thread Sealant Material | Body Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VS279AB-6-8 | 6 in stock | Backordered | $32.08/each | EA | 3/8 | na | 1/2 | Tube to Pipe | Compression | 45° Elbow | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS279AB-8-6 | Backordered | 35 in stock | $24.00/each | EA | 1/2 | na | 3/8 | Tube to Pipe | Compression | 45° Elbow | Male Pipe | 400 psi | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS279AB-8-8 | Backordered | Backordered | $39.30/each | EA | 1/2 | na | 1/2 | Tube to Pipe | Compression | 45° Elbow | Male Pipe | 400 psi | 121 °C | Brass | Annealed Copper | -53 °C | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-10-6 | 2 Limited Stock | 2 Limited Stock | $22.48/each | EA | 5/8 | na | 3/8 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-10-8 | 3 in stock | 12 in stock | $21.75/each | EA | 5/8 | na | 1/2 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-12-12 | Backordered | Backordered | $30.34/each | EA | 3/4 | na | 3/4 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 250 °F | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-12-8 | 3 in stock | Backordered | $32.43/each | EA | 3/4 | na | 1/2 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-4-2 | Backordered | 30 in stock | $5.81/each | EA | 1/4 | na | 1/8 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 250 °F | Brass | Annealed Copper | -53 °C | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-4-4 | 80 in stock | 34 in stock | $9.90/each | EA | 1/4 | na | 1/4 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-4-6 | 6 in stock | 5 in stock | $11.48/each | EA | 1/4 | na | 3/8 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -53 °C | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-6-2 | Backordered | 45 in stock | $8.76/each | EA | 3/8 | na | 1/8 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-6-4 | 82 in stock | 22 in stock | $9.86/each | EA | 3/8 | na | 1/4 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | 0.11037769784172662 lb | |
| VS68AB-6-6 | 6 in stock | 10 in stock | $9.78/each | EA | 3/8 | na | 3/8 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-6-8 | 4 in stock | 13 in stock | $18.30/each | EA | 3/8 | na | 1/2 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 250 °F | Brass | Annealed Copper | -53 °C | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-8-4 | 9 in stock | 6 in stock | $13.33/each | EA | 1/2 | na | 1/4 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-8-6 | 4 in stock | 6 in stock | $12.51/each | EA | 1/2 | na | 3/8 | Tube to Pipe | Compression | Connector | Male Pipe | 400 psi | 250 °F | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass | ||
| VS68AB-8-8 | 4 in stock | 5 in stock | $22.29/each | EA | 1/2 | na | 1/2 | Tube to Pipe | Compression | Connector | Male Pipe | 27 bar | 121 °C | Brass | Annealed Copper | -65 °F | Brass | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Brass |
