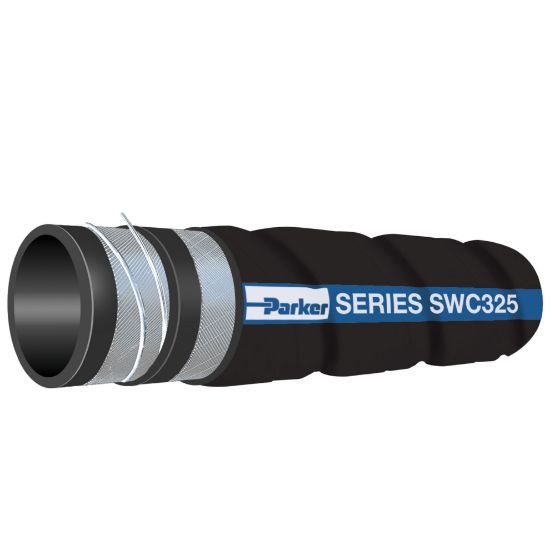

SWC325-2000 - ARCTIC TRANSLITE® Low Temperature Corrugated Petroleum Transport Suction Hose, Series SWC325

Arctic Translite Low Temperature Corrugated Petroleum Transport Suction Hose is designed for suction, discharge and transfer oil and refined fuels in applications to -67°F and 150 psi, Series SWC325

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	37 in stock

SKU SWC325-2000

$26.75/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Hose Inner Tube Material	Nitrile	Length per Package	100 ft
Design Factor	4:1	Cover Structure	Wrapped
Cover Material	Nitrile Blend	Cover Color	Black
Package Type	Coil	Outside Diameter	65.5 mm
Vacuum Pressure Rating	Full	Minimum Operating Temperature	-67 °F
Weight	1.19 lb/ft	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Media	Fuels (Biodiesel) - Check fuel type with our catalogue chart.	Inside Diameter	50.8 mm
Minimum Bend Radius	5.1 mm	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	82 °C

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
