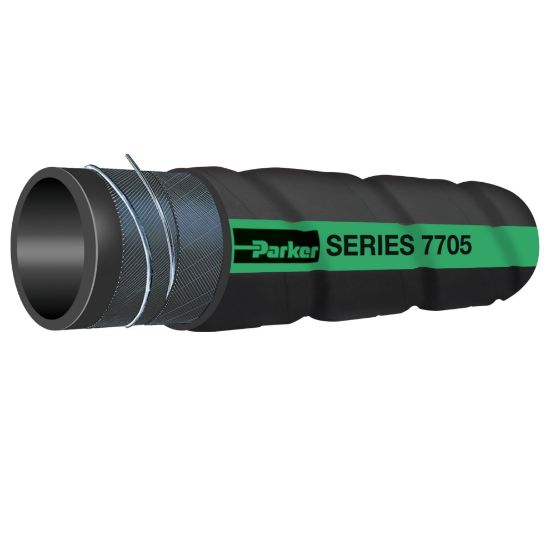

7705-1250 - GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705

Name: 7705-1250 - GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705
SKU: 7705-1250
Availability: InStock

Green Label Corrugated Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of biodiesel, oil and refined fuels in applications to 180°F and 200 psi, Series 7705

Availability:

700 in stock

Springfield, MO

700

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7705-1250

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	200	Specifications Met	N/A
Design Factor	4:1	Package Type	Coil
Length per Package	100 ft	Cover Color	Black
Minimum Bend Radius	63.5 mm	Maximum Operating Temperature	180 °F
Maximum Operating Pressure	200 psi	Inside Diameter	1-1/4 inch
Compatible Fitting	n/a	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Hose Inner Tube Material	Nitrile	Weight	1.04 kg/m
Minimum Operating Temperature	-20 °F	Outside Diameter	1.690 inch
Cover Material	Nitrile/PVC	Vacuum Pressure Rating	Full
Cover Structure	Corrugated	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
