B320BB549C - B Series Double Solenoid 4-way 2-position Valve

Name: B320BB549C - B Series Double Solenoid 4-way 2-position Valve
SKU: B320BB549C
Price: 222.45 USD
Availability: InStock

B Series Double Solenoid 4-way 2-position Valve

Availability:

6 in stock

Olivette, MO

Partner Available:

7 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B320BB549C

$222.45/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Operator Type Detail	Double	CV Factor	0.75
Override Type	Non-locking	Solenoid Voltage	24VDC
UOM	EA	Port	1/8 NPT
Pilot Supply	Internal	Override Type	Non-locking
Valve Passages	4-way	Port	1/8 NPT
Operator Type Detail	Double	Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)
Operator Type	Solenoid	Port Inch/BSP	NPT
CV Factor	0.75	Solenoid Voltage	24VDC
Parker Division	Pneumatic	Parker Group	Automation
Solenoid Connection	15mm 3-Pin DIN 43650C	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Pilot Supply	Internal	Valve Positions	2-position
Pneumatic Valve Type	Inline Valve	Series	B

Customers who bought this item also bought

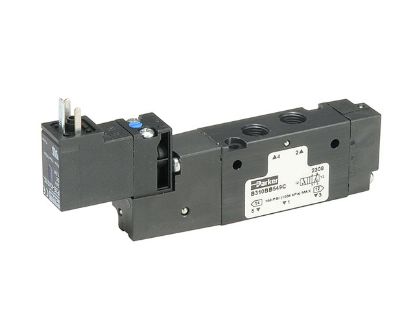

B310BB549C - B Series Single Solenoid 4-way 2-position Valve
