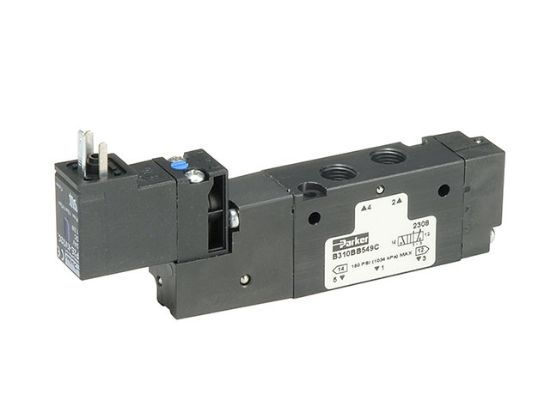

B310BB549C - B Series Single Solenoid 4-way 2-position Valve

Name: B310BB549C - B Series Single Solenoid 4-way 2-position Valve
SKU: B310BB549C
Price: 142.47 USD
Availability: LimitedAvailability

B Series Single Solenoid 4-way 2-position Valve

Availability:

2 Limited Stock

Wichita, KS	1
Springfield, MO	1

Partner Available:

26 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B310BB549C

$142.47/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Offset Return Type	Air Return
Pilot Supply	Internal	Port	1/8 NPT
Pkg Qty	1	CV Factor	0.75
UOM	EA	Operator Type Detail	Single
Override Type	Non-locking	Solenoid Voltage	24VDC
Parker Group	Automation	Offset Return Type	Air Return
Operator Type	Solenoid	Port	1/8 NPT
Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)	Pneumatic Valve Type	Inline Valve
Series	B	Operator Type Detail	Single
Port Inch/BSP	NPT	Solenoid Voltage	24VDC
Parker Division	Pneumatic	CV Factor	0.75
Valve Passages	4-way	Override Type	Non-locking
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Pilot Supply	Internal
Valve Positions	2-position	Solenoid Connection	15mm 3-Pin DIN 43650C

Customers who bought this item also bought

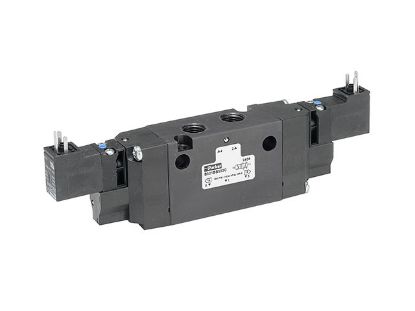

B320BB549C - B Series Double Solenoid 4-way 2-position Valve
