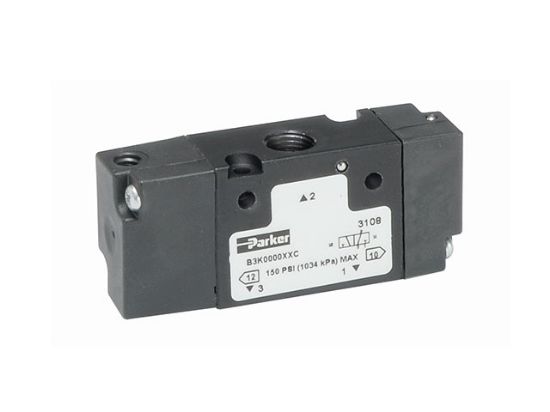

Picture of B Series Single Air Piloted 4-way 2-position Valve - B330000XXC

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

B Series Single Air Piloted 4-way 2-position Valve - B330000XXC

B Series Single Air Piloted 4-way 2-position Valve
Availability:
Backordered
SKU B330000XXC
$82.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOperator Type DetailSingle
UOMEAPort1/8 NPT
Offset Return TypeAir ReturnCV Factor0.75
Pkg Qty1Valve Positions2-position
Parker DivisionPneumaticOperator Type DetailSingle
Port Inch/BSPNPTOperator TypeAir Piloted
Operating Temperature-15°C to 49°C (5°F to 120°F)Offset Return TypeAir Return
Parker GroupAutomationPort1/8 NPT
SeriesBPneumatic Valve TypeInline Valve
Valve Passages4-wayCV Factor0.75
Supply Pressure Range20 to 145 PSIG (1.4 to 10 bar)
