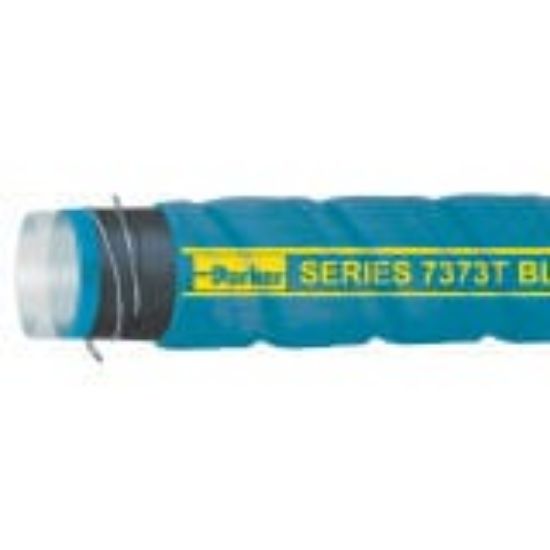

Picture of BLUE THUNDER® Large Diameter UHMWPE Corrugated Chemical Suction Hose, Series 7373T - 7373T-2500

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BLUE THUNDER® Large Diameter UHMWPE Corrugated Chemical Suction Hose, Series 7373T - 7373T-2500

Blue Thunder Large Diameter UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 200 psi, Series 7373T
Availability:
Backordered
SKU 7373T-2500
$41.08
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMaximum Working Pressure (psi)200
Hose I.D. (inch)2-1/2Minimum Operating Temperature-40 °C
DivisionHose Products DivisionApplicationChemical Transfer
Design Factor4:1Cover MaterialEthylene Propylene Diene Monomer (EPDM)
Specifications MetFDAPackage TypeCoil
Length per Package100 ftMaximum Operating Pressure14 bar
Cover ColorBlueCompatible Fittingn/a
Inside Diameter2-1/2 inchMinimum Bend Radius7 inch
Maximum Operating Temperature82 °CMediaAcids
Cover StructureWrappedVacuum Pressure Rating737 mm-Hg
Weight2.58 kg/mOutside Diameter3.154 inch
Hose Inner Tube MaterialUltra High Molecular Weight Polyethylene (UHMWPE)Hose Reinforcement Material4 Plies of Textile with Dual Wire Helix
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
