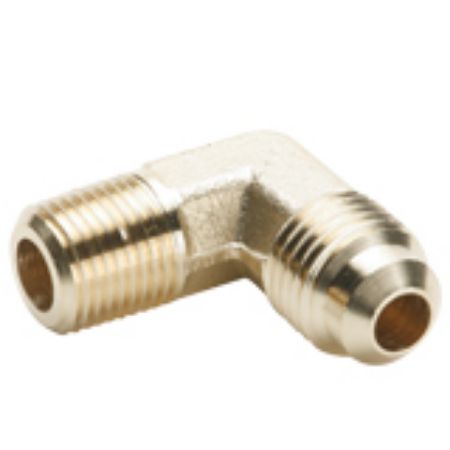

Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Product Style | Shape | Connection 1 Type | Connection 2 Type | Connection 3 Type | Connection 1 Thread Size | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Body Material | Dimensional Weight | Specifications Met | Maximum Operating Pressure | Media | Nut Material | Tube Material | O-Ring Material | Maximum Operating Temperature | Minimum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 144F-10 | Backordered | 27 in stock | $26.69/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 7/8-14 inch | 7/8-14 inch | 7/8-14 inch | 5/8 inch | 5/8 inch | 5/8 inch | Brass | 0.27594424460431655 lb | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | |
| 144F-3 | Backordered | 1 Limited Stock | $9.55/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 3/8-24 inch | 3/8-24 inch | 3/8-24 inch | 3/16 inch | 3/16 inch | 3/16 inch | Brass | SAE J512, SAE J513 | 131.0 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 144F-4 | 20 in stock | 73 in stock | $5.34/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 7/16-20 inch | 7/16-20 inch | 7/16-20 inch | 1/4 inch | 1/4 inch | 1/4 inch | Brass | 0.11037769784172662 lb | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -53 °C | |
| 144F-5 | 16 in stock | 26 in stock | $20.58/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 1/2-20 inch | 1/2-20 inch | 1/2-20 inch | 5/16 inch | 5/16 inch | 5/16 inch | Brass | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 144F-6 | 64 in stock | 135 in stock | $12.19/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 5/8-18 inch | 5/8-18 inch | 5/8-18 inch | 3/8 inch | 3/8 inch | 3/8 inch | Brass | 0.11037769784172662 lb | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C | |
| 144F-6-6-4 | Backordered | 165 in stock | $60.13/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 5/8-18 inch | 5/8-18 inch | 7/16-20 inch | 3/8 inch | 3/8 inch | 1/4 inch | Brass | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -53 °C | ||
| 144F-8 | 15 in stock | 51 in stock | $15.82/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 3/4-16 inch | 3/4-16 inch | 3/4-16 inch | 1/2 inch | 1/2 inch | 1/2 inch | Brass | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -53 °C | ||
| 144F-8-8-6 | Backordered | 2 Limited Stock | $36.31/each | EA | Flare to Flare | Tee | Flare | Flare | Flare | 3/4-16 inch | 3/4-16 inch | 5/8-18 inch | 1/2 inch | 1/2 inch | 3/8 inch | Brass | SAE J512, SAE J513 | 51.7 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C | ||
| 145F-10-8 | Backordered | 2 Limited Stock | $27.30/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 7/8-14 inch | 7/8-14 inch | 1/2 inch | 5/8 inch | 5/8 inch | NA | Brass | 0.27594424460431655 lb | SAE J512, SAE J513 | 44.8 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | |
| 145F-2-2 | Backordered | 13 in stock | $60.50/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 5/16-24 inch | 5/16-24 inch | 1/8 inch | 1/8 inch | 1/8 inch | NA | Brass | SAE J512, SAE J513 | 193.0 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C | ||
| 145F-4-2 | 400 in stock | 148 in stock | $7.29/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 7/16-20 inch | 7/16-20 inch | 1/8 inch | 1/4 inch | 1/4 inch | NA | Brass | SAE J512, SAE J513 | 1,400 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 145F-4-4 | Backordered | 227 in stock | $14.72/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 7/16-20 inch | 7/16-20 inch | 1/4 inch | 1/4 inch | 1/4 inch | NA | Brass | SAE J512, SAE J513 | 96.5 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 145F-5-4 | 31 in stock | 12 in stock | $23.28/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 1/2-20 inch | 1/2-20 inch | 1/4 inch | 5/16 inch | 5/16 inch | NA | Brass | SAE J512, SAE J513 | 1,200 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 145F-6-4 | 35 in stock | 130 in stock | $13.83/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 5/8-18 inch | 5/8-18 inch | 1/4 inch | 3/8 inch | 3/8 inch | NA | Brass | 0.11037769784172662 lb | SAE J512, SAE J513 | 1,000 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C | |
| 145F-6-6 | Backordered | 13 in stock | $22.29/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 5/8-18 inch | 5/8-18 inch | 3/8 inch | 3/8 inch | 3/8 inch | NA | Brass | SAE J512, SAE J513 | 1,000 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -65 °F | ||
| 145F-6-8 | Backordered | 12 in stock | $38.86/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 5/8-18 inch | 5/8-18 inch | 1/2 inch | 3/8 inch | 3/8 inch | NA | Brass | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -65 °F | ||
| 145F-8-6 | Backordered | 56 in stock | $24.35/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 3/4-16 inch | 3/4-16 inch | 3/8 inch | 1/2 inch | 1/2 inch | NA | Brass | SAE J512, SAE J513 | 51.7 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -53 °C | ||
| 145F-8-8 | 1 Limited Stock | 152 in stock | $36.07/each | EA | Flare to Pipe | Branch Tee | Flare | Flare | Male Pipe | 3/4-16 inch | 3/4-16 inch | 1/2 inch | 1/2 inch | 1/2 inch | NA | Brass | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 250 °F | -53 °C | ||
| 1495F-12-12 | Backordered | 5 in stock | $66.52/each | EA | Flare to Pipe | 90° Forged Elbow | Flare | SAE Straight Thread | NA | 1-1/16-14 inch | 1-1/16-14 inch | NA | 3/4 inch | NA | NA | Brass | 0.5518884892086331 lb | SAE J512, SAE J513 | 37.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C | |
| 149F-10-12 | 17 in stock | 47 in stock | $28.82/each | EA | Flare to Pipe | 90° Forged Elbow | Flare | Male Pipe | NA | 7/8-14 inch | 3/4 inch | NA | 5/8 inch | NA | NA | Brass | 0.27594424460431655 lb | SAE J512, SAE J513 | 650 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluorocarbon | 121 °C | -53 °C |
