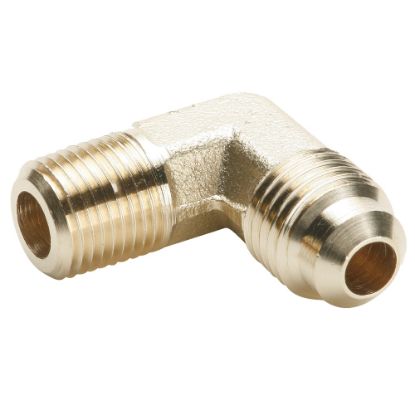

Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Type | Connection 1 Type | Connection 1 Thread Size | Connection 1 Tube Outside Diameter | Product Style | Connection 3 Tube Outside Diameter | Shape | Connection 3 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 2 Tube Outside Diameter | Body Material | Maximum Operating Temperature | O-Ring Material | Minimum Operating Temperature | Specifications Met | Media | Nut Material | Tube Material | Maximum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 149F-10-4 | Backordered | 25 in stock | $44.15/each | EA | Male Pipe | Flare | 7/8-14 inch | 5/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/4 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 650 psi | ||
| 149F-10-6 | 2 Limited Stock | 611 in stock | $17.43/each | EA | Male Pipe | Flare | 7/8-14 inch | 5/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/8 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 44.8 bar | 0.27594424460431655 lb | |
| 149F-10-8 | 16 in stock | 505 in stock | $14.84/each | EA | Male Pipe | Flare | 7/8-14 inch | 5/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/2 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 44.8 bar | 0.27594424460431655 lb | |
| 149F-12-12 | 1 Limited Stock | 352 in stock | $39.50/each | EA | Male Pipe | Flare | 1-1/16-14 inch | 3/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/4 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 37.9 bar | 0.5518884892086331 lb | |
| 149F-12-8 | 2 Limited Stock | 263 in stock | $30.15/each | EA | Male Pipe | Flare | 1-1/16-14 inch | 3/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/2 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 550 psi | 0.27594424460431655 lb | |
| 149F-2-2 | 66 in stock | 136 in stock | $8.32/each | EA | Male Pipe | Flare | 5/16-24 inch | 1/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/8 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 193.0 bar | 0.11037769784172662 lb | |
| 149F-3-2 | Backordered | 28 in stock | $4.52/each | EA | Male Pipe | Flare | 3/8-24 inch | 3/16 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/8 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 131.0 bar | 0.11037769784172662 lb | |
| 149F-4-2 | 1374 in stock | 585 in stock | $3.97/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/8 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,400 psi | 0.27594424460431655 lb | |
| 149F-4-4 | 96 in stock | 757 in stock | $4.96/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/4 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | 0.27594424460431655 lb | |
| 149F-4-6 | 154 in stock | 299 in stock | $10.82/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/8 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | 0.11037769784172662 lb | |
| 149F-4-8 | Backordered | 12 in stock | $23.21/each | EA | Male Pipe | Flare | 7/16-20 inch | 1/4 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/2 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96.5 bar | ||
| 149F-5-2 | 10 in stock | 60 in stock | $9.58/each | EA | Male Pipe | Flare | 1/2-20 inch | 5/16 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/2 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 82.7 bar | ||
| 149F-5-4 | 2 Limited Stock | 146 in stock | $8.85/each | EA | Male Pipe | Flare | 1/2-20 inch | 5/16 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/4 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 82.7 bar | 0.11037769784172662 lb | |
| 149F-5-6 | 18 in stock | 20 in stock | $16.84/each | EA | Male Pipe | Flare | 1/2-20 inch | 5/16 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/8 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,200 psi | ||
| 149F-6-12 | Backordered | 25 in stock | $39.05/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/4 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 68.9 bar | ||
| 149F-6-2 | Backordered | 320 in stock | $7.75/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/8 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 68.9 bar | 0.11037769784172662 lb | |
| 149F-6-4 | 17 in stock | 816 in stock | $5.59/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/4 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | 0.27594424460431655 lb | |
| 149F-6-6 | 173 in stock | 1154 in stock | $7.14/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/8 inch | NA | NA | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1,000 psi | 0.27594424460431655 lb | |
| 149F-6-8 | 36 in stock | 288 in stock | $13.33/each | EA | Male Pipe | Flare | 5/8-18 inch | 3/8 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 1/2 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 68.9 bar | 0.11037769784172662 lb | |
| 149F-8-12 | 2 Limited Stock | 51 in stock | $18.57/each | EA | Male Pipe | Flare | 3/4-16 inch | 1/2 inch | Flare to Pipe | NA | 90° Forged Elbow | NA | 3/4 inch | NA | NA | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | 0.27594424460431655 lb |
