Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Type | Connection 1 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Product Style | Connection 2 Type | Connection 3 Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 2 Tube Outside Diameter | Connection 1 Thread Size | Shape | Body Material | Maximum Operating Temperature | O-Ring Material | Minimum Operating Temperature | Specifications Met | Maximum Operating Pressure | Media | Nut Material | Tube Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2GF-8 | 2 Limited Stock | 354 in stock | $2.45/each | EA | Flare | 1/2 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Flare Gasket | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 51.7 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.027594424460431654 lb | |

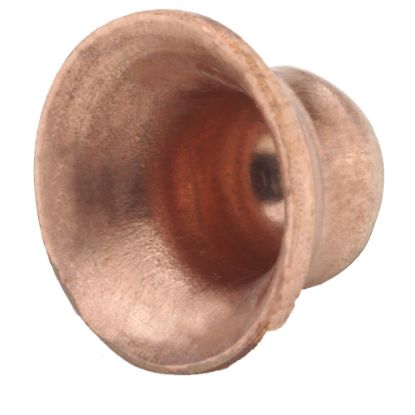

| 3GF-10 | Backordered | Backordered | $4.96/each | EA | Flare | 5/8 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-12 | Backordered | Backordered | $5.53/each | EA | Flare | 3/4 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 37.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-3 | Backordered | Backordered | POR | EA | Flare | 3/16 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 250 | Fluorocarbon | -65 | SAE J512, SAE J513 | 2800 | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-4 | 41 in stock | 38 in stock | $1.82/each | EA | Flare | 1/4 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-5 | 44 in stock | 27 in stock | $3.12/each | EA | Flare | 5/16 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-6 | 16 in stock | 186 in stock | $3.10/each | EA | Flare | 3/8 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 1,000 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 3GF-8 | 11 in stock | 33 in stock | $2.95/each | EA | Flare | 1/2 inch | NA | Flare | NA | NA | NA | NA | NA | NA | Seal Bonnet | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||

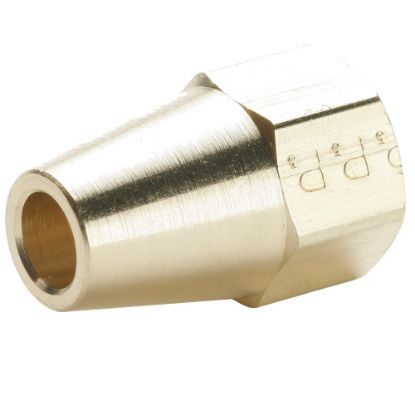

| 41FL-10 | Backordered | 19 in stock | $21.93/each | EA | Flare | 5/8 inch | NA | Flare | NA | NA | NA | NA | NA | 7/8-14 inch | Long Extruded Nut | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 650 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-12 | 8 in stock | Backordered | $30.84/each | EA | Flare | 3/4 inch | NA | Flare | NA | NA | NA | NA | NA | 1-1/16-14 inch | Long Extruded Nut | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 37.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-2 | Backordered | 60 in stock | $5.31/each | EA | Flare | 1/8 inch | NA | Flare | NA | NA | NA | NA | NA | 5/16-24 inch | Long Extruded Nut | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 193.0 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-3 | Backordered | 32 in stock | $4.42/each | EA | Flare | 3/16 inch | NA | Flare | NA | NA | NA | NA | NA | 3/8-24 inch | Long Extruded Nut | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 1,900 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-4 | 7 in stock | 78 in stock | $3.03/each | EA | Flare | 1/4 inch | NA | Flare | NA | NA | NA | NA | NA | 7/16-20 inch | Long Extruded Nut | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 96.5 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.2614208633093525 lb | |
| 41FL-5 | Backordered | 59 in stock | $4.51/each | EA | Flare | 5/16 inch | NA | Flare | NA | NA | NA | NA | NA | 1/2-20 inch | Long Extruded Nut | Brass | 250 °F | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 82.7 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-6 | Backordered | 138 in stock | $5.81/each | EA | Flare | 3/8 inch | NA | Flare | NA | NA | NA | NA | NA | 5/8-18 inch | Long Extruded Nut | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 1,000 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FL-8 | Backordered | 51 in stock | $9.27/each | EA | Flare | 1/2 inch | NA | Flare | NA | NA | NA | NA | NA | 3/4-16 inch | Long Extruded Nut | Brass | 250 °F | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||

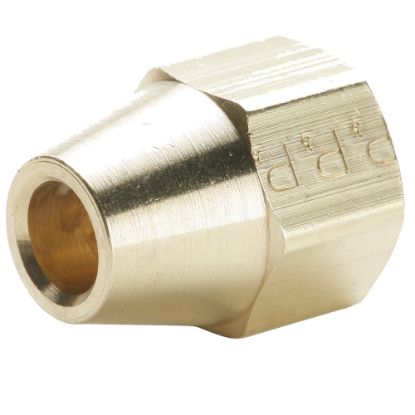

| 41FS-10 | 112 in stock | 207 in stock | $10.19/each | EA | Flare | 5/8 inch | NA | Flare | NA | NA | NA | NA | NA | 7/8-14 inch | Short Extruded Nut | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.11362410071942446 lb | |
| 41FS-12 | 3 in stock | 43 in stock | $15.93/each | EA | Flare | 3/4 inch | NA | Flare | NA | NA | NA | NA | NA | 1-1/16-14 inch | Short Extruded Nut | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 44.8 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.27594424460431655 lb | |
| 41FS-14 | Backordered | 4 in stock | $40.34/each | EA | Flare | 7/8 inch | NA | Flare | NA | NA | NA | NA | NA | 1-1/4-12 inch | Short Extruded Nut | Brass | 121 °C | Fluorocarbon | -65 °F | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 41FS-2 | Backordered | 116 in stock | $4.27/each | EA | Flare | 1/8 inch | NA | Flare | NA | NA | NA | NA | NA | 5/16-24 inch | Short Extruded Nut | Brass | 121 °C | Fluorocarbon | -53 °C | SAE J512, SAE J513 | 193.0 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared |
