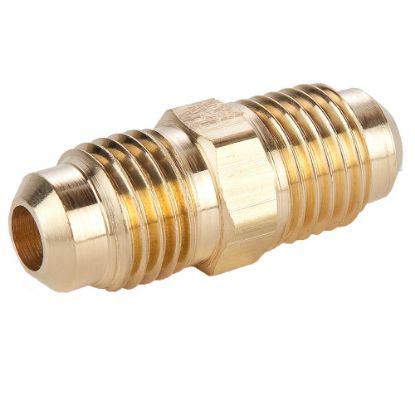

Brass 45° Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
Features/Benefits:
• All brass construction
• Forged nuts for refrigeration applications
• Long nuts for vibration
• U.L. listed for flammable liquids
• Functional requirements of SAE J512 & SAE J513
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Refrigerant lines
• Propane lines
• Fuels
• Natural Gas
• Oil burners
• Adapters
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Product Style | Connection 1 Type | Connection 2 Type | Connection 1 Thread Size | Connection 2 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 3 Type | Connection 3 Thread Size | Shape | Body Material | O-Ring Material | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Maximum Operating Pressure | Media | Nut Material | Tube Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42F-6-5 | 3 in stock | 69 in stock | $9.81/each | EA | Flare to Flare | Flare | Flare | 5/8-18 inch | 1/2-20 inch | 3/8 inch | 5/16 inch | NA | NA | NA | Union Reducer | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 42F-8 | 12 in stock | 285 in stock | $9.36/each | EA | Flare to Flare | Flare | Flare | 3/4-16 inch | 3/4-16 inch | 1/2 inch | 1/2 inch | NA | NA | NA | Union | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.11007194244604317 lb | |
| 42F-8-4 | Backordered | 9 in stock | $11.99/each | EA | Flare to Flare | Flare | Flare | 3/4-16 inch | 7/16-20 inch | 1/2 inch | 1/4 inch | NA | NA | NA | Union Reducer | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 42F-8-6 | 14 in stock | 153 in stock | $10.38/each | EA | Flare to Flare | Flare | Flare | 3/4-16 inch | 5/8-18 inch | 1/2 inch | 3/8 inch | NA | NA | NA | Union Reducer | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 51.7 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.11037769784172662 lb | |
| 43F-10-10 | Backordered | Backordered | $10.89/each | EA | Flare to Solder | Flare | Solder O D | 7/8-14 inch | NA | 5/8 inch | 1/4 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-10-12 | Backordered | 2 Limited Stock | $18.65/each | EA | Flare to Solder | Flare | Solder O D | 7/8-14 inch | NA | 5/8 inch | 3/4 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-10-8 | Backordered | Backordered | $17.16/each | EA | Flare to Solder | Flare | Solder O D | 7/8-14 inch | NA | 5/8 inch | 1/2 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 650 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-12-12 | Backordered | Backordered | $27.17/each | EA | Flare to Solder | Flare | Solder O D | 1-1/16-14 inch | NA | 3/4 inch | 3/4 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 0.5518884892086331 lb | |
| 43F-12-14 | Backordered | Backordered | $28.78/each | EA | Flare to Solder | Flare | Solder O D | 1-1/16-14 inch | NA | 3/4 inch | 7/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-4-4 | Backordered | 83 in stock | $6.73/each | EA | Flare to Solder | Flare | Solder O D | 7/16-20 inch | NA | 1/4 inch | 1/4 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | 1,400 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-4-5 | Backordered | Backordered | $4.64/each | EA | Flare to Solder | Flare | Solder O D | 7/16-20 inch | NA | 1/4 inch | 5/16 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | 1,400 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-4-6 | Backordered | 11 in stock | $5.59/each | EA | Flare to Solder | Flare | Solder O D | 7/16-20 inch | NA | 1/4 inch | 3/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-6-10 | Backordered | 3 in stock | $19.28/each | EA | Flare to Solder | Flare | Solder O D | 5/8-18 inch | NA | 3/8 inch | 5/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-6-4 | Backordered | Backordered | $10.56/each | EA | Flare to Solder | Flare | Solder O D | 5/8-18 inch | NA | 3/8 inch | 1/4 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-6-5 | Backordered | Backordered | $16.36/each | EA | Flare to Solder | Flare | Solder O D | 5/8-18 inch | NA | 3/8 inch | 5/16 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | 2800 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-6-6 | 5 in stock | 214 in stock | $7.81/each | EA | Flare to Solder | Flare | Solder O D | 5/8-18 inch | NA | 3/8 inch | 3/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-6-8 | 28 in stock | 5 in stock | $9.43/each | EA | Flare to Solder | Flare | Solder O D | 5/8-18 inch | NA | 3/8 inch | 1/2 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -65 °F | SAE J512, SAE J513 | 68.9 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-8-10 | Backordered | Backordered | $15.57/each | EA | Flare to Solder | Flare | Solder O D | 3/4-16 inch | NA | 1/2 inch | 5/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-8-6 | Backordered | Backordered | $10.85/each | EA | Flare to Solder | Flare | Solder O D | 3/4-16 inch | NA | 1/2 inch | 3/8 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 250 °F | -53 °C | SAE J512, SAE J513 | 750 psi | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | ||
| 43F-8-8 | Backordered | Backordered | $7.58/each | EA | Flare to Solder | Flare | Solder O D | 3/4-16 inch | NA | 1/2 inch | 1/2 inch | NA | NA | NA | Connector | Brass | Fluorocarbon | 121 °C | -65 °F | SAE J512, SAE J513 | 193 bar | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared |
