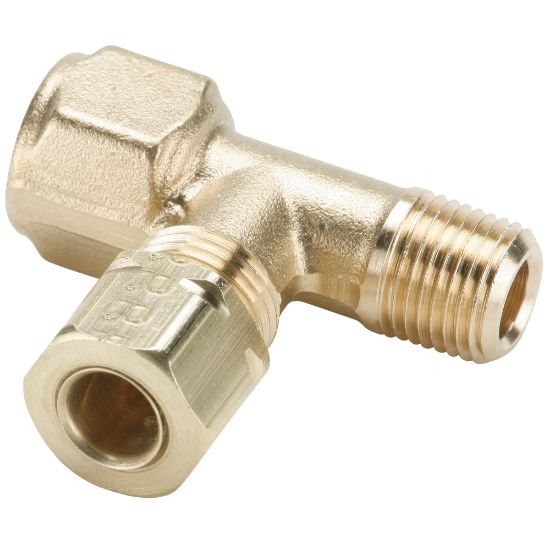

176CA-4-2 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	60 in stock

SKU 176CA-4-2

$12.10/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/8"
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Configuration	Tube to Pipe
Connection 3 Type	Female Pipe	Body Material	Brass
Maximum Operating Temperature	250 °F	For Fluid Type	Air
Connection Type	NPTF	Minimum Operating Temperature	-65 °F
Maximum Operating Pressure	2800 psi	Tube Material	Copper
Materials of Construction	Brass (Sleeve)
