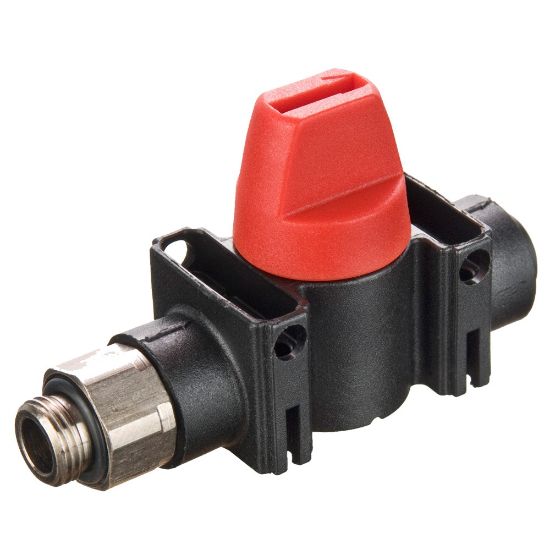

Picture of Mini Ball Valves - MVV308-8M-4G

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mini Ball Valves - MVV308-8M-4G

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Availability:
Backordered
SKU MVV308-8M-4G
$59.09
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAApplicationPneumatics,Packaging, Vacuum,Robotics, Textile
Stem MaterialBrassMounting TypePanel
Minimum Operating Temperature-4 °FProduct TypeMini Ball Valve
VentedYesMaximum Operating Pressure145 psi
Specifications MetN/AConnection Size8 x G1/4 mm
Vacuum Pressure Rating28 Inch-HgOrifice Size.24
Operation Typen/aMaximum Operating Temperature175 °F
Handle TypeNylonConnection TypePTC x NPT
Seal MaterialNBRActuation TypeManual
Seat MaterialNylonConfigurationTube to Pipe
ShapeIn-LineDivisionFluid System Connectors Division
Ball MaterialBrassFunction2-Way, Normally Open, Normally Closed
Body MaterialNylonMaximum Flow Raten/a
MediaCompressed AirGripping Ring MaterialStainless Steel
California Residents: Prop-65 Warning
