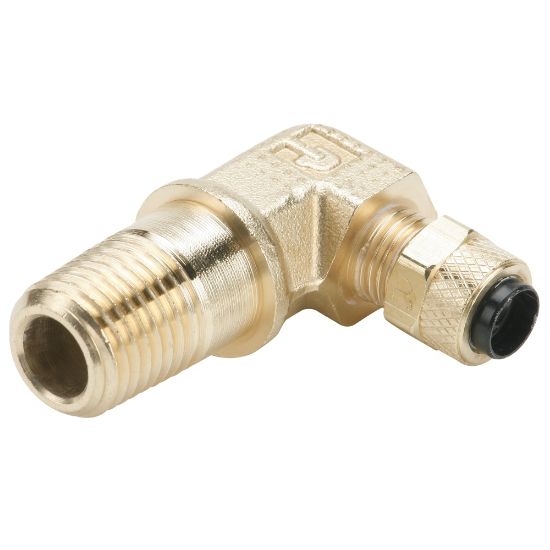

169LP-4-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: 169LP-4-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 169LP-4-4
Price: 28.84 USD
Availability: LimitedAvailability

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

1 Limited Stock

TOPEKA, KS

Partner Available:

3 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 169LP-4-4

$28.84/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Shape	90° Long Elbow	Style	Tube to Pipe
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Body Material	Brass	Maximum Operating Temperature	150 °F
Maximum Operating Pressure	10 bar	Nut Material	Brass
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Brass, Acetal Copolymer
