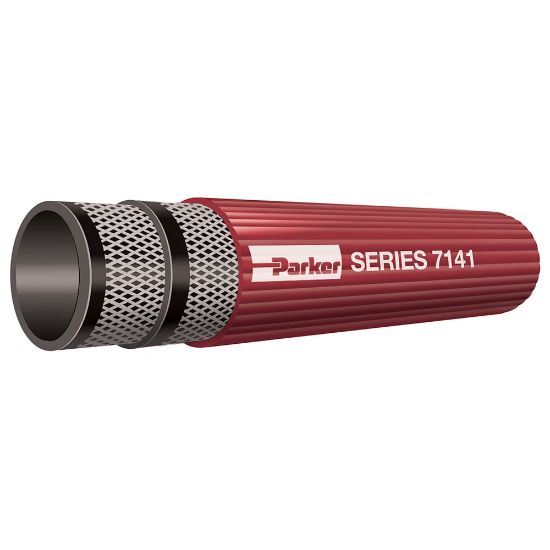

7141-50200 - Grade T Single Line Fuel Gas Welding Hose, Series 7141

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered
Partner Available:	53 in stock

SKU 7141-50200

$3.91/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	200	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	127 mm	Length per Package	500 ft
Cover Color	Red	Maximum Operating Temperature	93 °C
Maximum Operating Pressure	200 psi	Outside Diameter	0.880 inch
Inside Diameter	12.7 mm	Package Type	Reel
Hose Inner Tube Material	Black	Weight	0.43 kg/m
Cover Structure	Longitudinal Ribs	Hose Reinforcement Material	4 Plies of Textile
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Specifications Met	ARPM IP-7	Media	Propane

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Distributor Support

Welding Hose Safety Bulletin (PDF)
