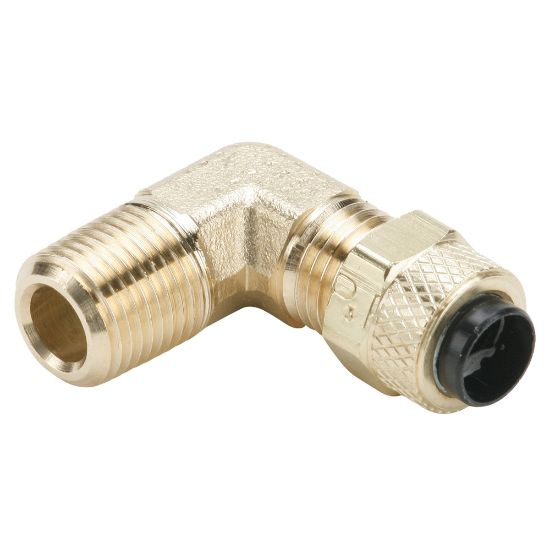

Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 169P-4-2

Name: Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite. - 169P-4-2
SKU: 169P-4-2

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

Backordered

SKU 169P-4-2

$5.70

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Style	Male Pipe
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	0 °F
Maximum Operating Pressure	10 bar	Application	Machine Tools
Nut Material	Brass	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Sleeve Material	Brass, Acetal Copolymer	Dimensional Weight	0.027594424460431654 lb
