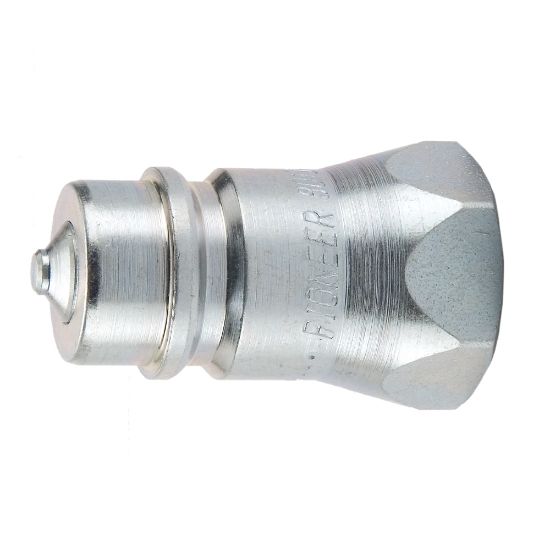

8010-16P - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	41 in stock

SKU 8010-16P

$21.53/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	ORB
Valve Style	Poppet	Port Connection (inch)	7/8 - 14
Plating Type	Zinc with clear trivalent chromate	Media	Hydraulic
Coupling Half	Nipple	Maximum Operating Temperature	250 °F
Specifications Met	ISO 5675	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.02670863309352518 lb	Body Material	Steel
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Thread Size	Female	Flow Rate	12 Gal/min
Body Size	1/2 inch
