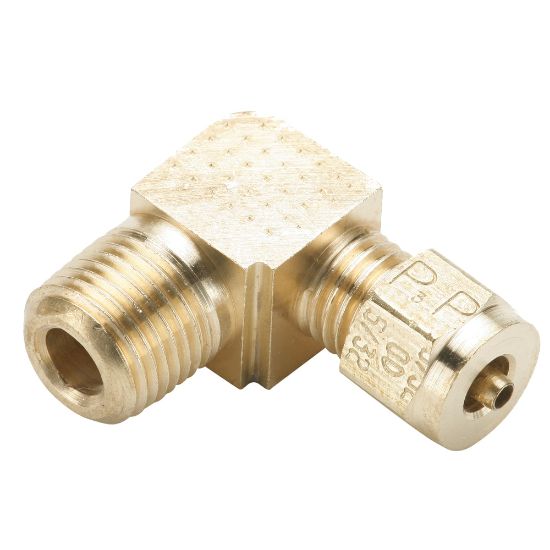

Picture of 269TF-5/32-2 - Brass Compression-Style Transmission Fittings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

269TF-5/32-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.
Availability:
Backordered
Estimated Lead Time: 31 days
Partner Available:34 in stock
SKU 269TF-5/32-2
$16.11/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShape90° Elbow
Connection 1 TypeCompressionProduct StyleTube to Pipe
Connection 2 Size1/8 inchConnection 1 Size5/32 inch
Connection 2 TypeMale Pipe ThreadMinimum Operating Temperature-40 °C
Body MaterialBrassConnection 2 Tube Outside Diameterna
Maximum Operating Pressure10 barO-Ring MaterialNitrile
Nut MaterialBrassSleeve MaterialBrass
MediaCompressed AirCollet MaterialBrass
Tube MaterialSAE J844 Type A & B Nylon TubingMaximum Operating Temperature220 °F
Connection 1 SizeCompression
