Brass Compression-Style Transmission Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s compression style transmission fitting utilizes a specially designed slotted sleeve to help eliminate notch stress related to over torque. Transmission fittings are ideal for pressure protected pneumatic transmission applications. Transmission fittings are also available in a push-to-connect style reducing assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
Features/Benefits:
• All brass construction
• D.O.T. approved with staked in tube support
• Compression & Push-to-Connect styles
• Slotted sleeve
• Use with J844 nylon tubing
• Electroless nickel plated bodies can be used with bio-diesel
Applications:
• Air shift transmissions
• Seat controls
• Dash controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 1 Type | Product Style | Connection 2 Size | Connection 1 Size | Connection 2 Type | Minimum Operating Temperature | Body Material | Connection 2 Tube Outside Diameter | Maximum Operating Pressure | O-Ring Material | Nut Material | Sleeve Material | Media | Collet Material | Tube Material | Maximum Operating Temperature | Connection 1 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

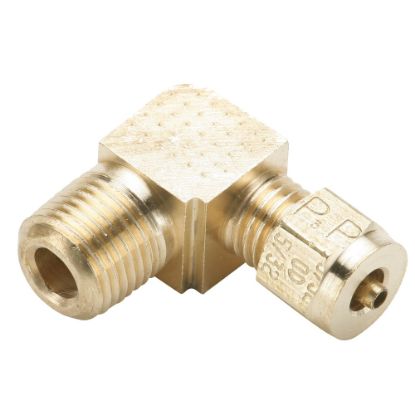

| 269TF-2-2 | Backordered | 39 in stock | $14.44/each | EA | 90° Elbow | Compression | Tube to Pipe | 1/8 inch | 1/8 inch | Male Pipe Thread | -40 °C | Brass | na | 150 psi | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type A & B Nylon Tubing | +200 °F | Compression | |
| 269TF-5/32-2 | Backordered | 34 in stock | $16.11/each | EA | 90° Elbow | Compression | Tube to Pipe | 1/8 inch | 5/32 inch | Male Pipe Thread | -40 °C | Brass | na | 10 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type A & B Nylon Tubing | 220 °F | Compression | |

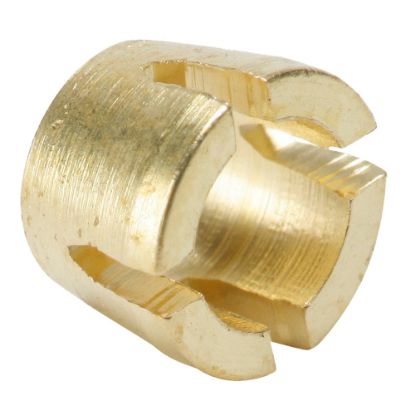

| 60TF-2 | Backordered | 80 in stock | $3.03/each | EA | Sleeve | Push-to-Connect | Tube to Tube | NA | 1/8 inch | NA | -40 °C | Brass | na | 10.3 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type A & B Nylon Tubing | +93.3 °C | Compression | |
| 60TF-5/32 | Backordered | 82 in stock | $5.11/each | EA | Sleeve | Push-to-Connect | Tube to Tube | NA | 5/32 inch | NA | -40 °F | Brass | na | 10.3 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type A & B Nylon Tubing | +93.3 °C | Compression | |

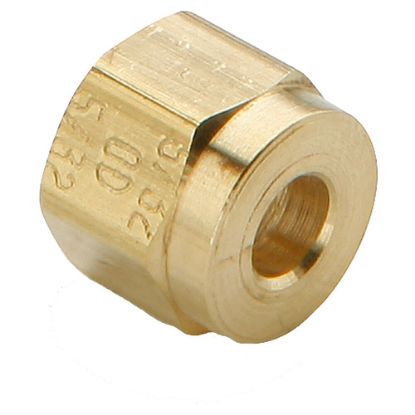

| 61TF-2 | Backordered | 19 in stock | $2.20/each | EA | Nut | Female Pipe Thread | Pipe to Pipe | NA | 1/8 inch | NA | -40 °F | Brass | na | 10 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type & B Nylon Tubing | 104 °C | Compression | |
| 61TF-5/32 | Backordered | 85 in stock | $3.03/each | EA | Nut | Female Pipe Thread | Pipe to Pipe | NA | 5/32 inch | NA | -40 °F | Brass | na | 10 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type A & B Nylon Tubing | 220 °F | Compression | |

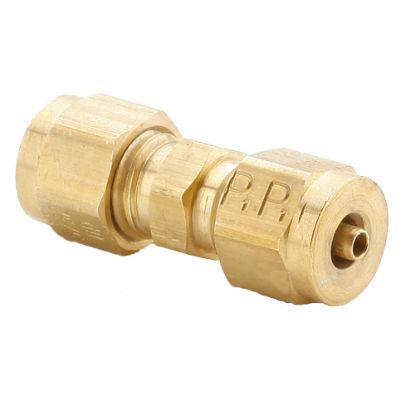

| 62TF-2 | Backordered | 43 in stock | $14.65/each | EA | Union | Compression | Tube to Tube | 1/8 inch | 1/8 inch | Compression | -40 °C | Brass | na | 10 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type & B Nylon Tubing | 104 °C | Compression | |
| 62TF-5/32 | Backordered | 14 in stock | $21.82/each | EA | Union | Compression | Tube to Tube | 5/32 inch | 5/32 inch | Compression | -40 °C | Brass | 10.3 bar | Compressed Air | SAE J844 Type & B Nylon Tubing | +93.3 °C | |||||||

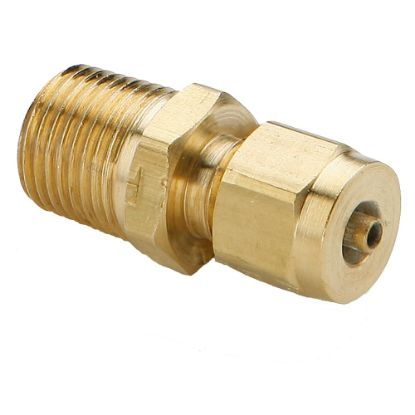

| 68TF-2-1 | Backordered | 34 in stock | $8.95/each | EA | Connector | Compression | Tube to Pipe | 1/16 inch | 1/8 inch | Male Pipe Thread | -40 °C | Brass | 10.3 bar | Compressed Air | SAE J844 Type & B Nylon Tubing | +93.3 °C | |||||||
| 68TF-2-2 | 10 in stock | 43 in stock | $8.67/each | EA | Connector | Compression | Tube to Pipe | 1/8 inch | 1/8 inch | Male Pipe Thread | -40 °C | Brass | na | 150 psi | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type & B Nylon Tubing | +93.3 °C | Compression | |
| 68TF-5/32-1 | Backordered | 8 in stock | $12.15/each | EA | Connector | Compression | Tube to Pipe | 1/16 inch | 5/32 inch | Male Pipe Thread | -40 °C | Brass | 10.3 bar | Compressed Air | SAE J844 Type & B Nylon Tubing | +93.3 °C | |||||||
| 68TF-5/32-2 | Backordered | 10 in stock | $12.15/each | EA | Connector | Compression | Tube to Pipe | 1/8 inch | 5/32 inch | Male Pipe Thread | -40 °F | Brass | na | 10 bar | Nitrile | Brass | Brass | Compressed Air | Brass | SAE J844 Type & B Nylon Tubing | 220 °F | Compression |
