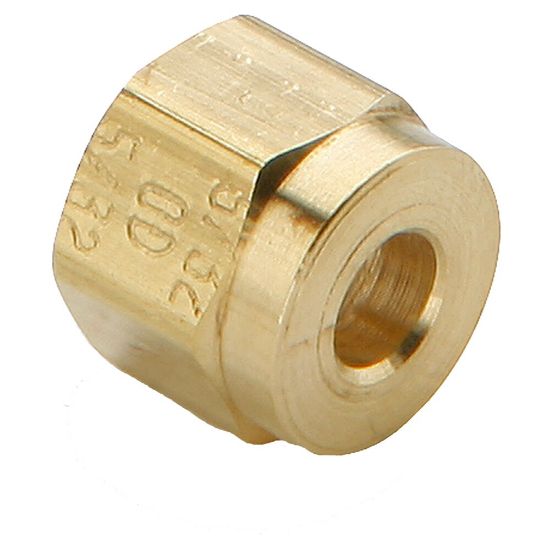

Brass Compression-Style Transmission Fittings - 61TF-5/32

Name: Brass Compression-Style Transmission Fittings - 61TF-5/32
SKU: 61TF-5/32

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Availability:

Backordered

SKU 61TF-5/32

$3.03

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Nut
Product Style	Pipe to Pipe	Connection 2 Type	NA
Connection 1 Size	5/32 inch	Connection 2 Size	NA
Connection 1 Type	Female Pipe Thread	Brand	PARKER
Division	Fluid System Connectors Division	Minimum Operating Temperature	-40 °F
Body Material	Brass	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Connection 2 Tube Outside Diameter	na
Maximum Operating Pressure	10 bar	O-Ring Material	Nitrile
Nut Material	Brass	Sleeve Material	Brass
Media	Compressed Air	Collet Material	Brass
Tube Material	SAE J844 Type A & B Nylon Tubing	Application	Air Shift Transmission, Seat Controls, Dash Controls
Maximum Operating Temperature	220 °F	Connection 1 Size	Compression
