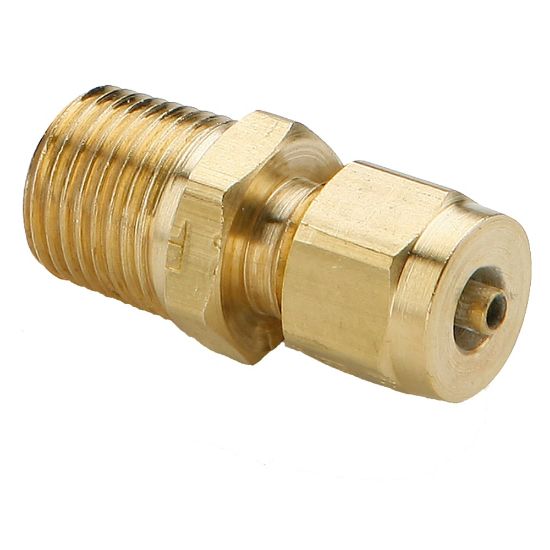

Brass Compression-Style Transmission Fittings - 68TF-2-1

Name: Brass Compression-Style Transmission Fittings - 68TF-2-1
SKU: 68TF-2-1

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Availability:

Backordered

SKU 68TF-2-1

$8.95

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Male Pipe Thread
Connection 1 Size	1/8 inch	Connection 1 Type	Compression
Shape	Connector	Connection 2 Size	1/16 inch
Product Style	Tube to Pipe	Maximum Operating Temperature	+93.3 °C
Application	Air Shift Transmission, Seat Controls, Dash Controls	Division	Fluid System Connectors Division
Media	Compressed Air	Division	Fluid System Connectors Division
Body Material	Brass	Tube Material	SAE J844 Type & B Nylon Tubing
Brand	PARKER	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	10.3 bar	Technology	Fluid & Gas Handling
