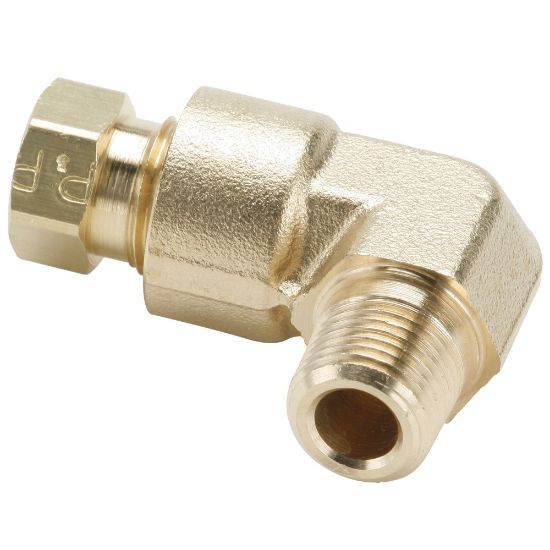

Brass flareless tube fitting, Hi-Duty - 169HD-3-2

Name: Brass flareless tube fitting, Hi-Duty - 169HD-3-2
SKU: 169HD-3-2

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:

Backordered

SKU 169HD-3-2

$20.58

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/16
Style	Tube to Pipe	Connection 2 Style	Male Pipe
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Nut Material	Brass	Application	Tube Assemblies, Engine, Compressors
Tube Material	Tube Assemblies, Engine, Compressors	Sleeve Material	Brass
Maximum Operating Pressure	2850 psi
