*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

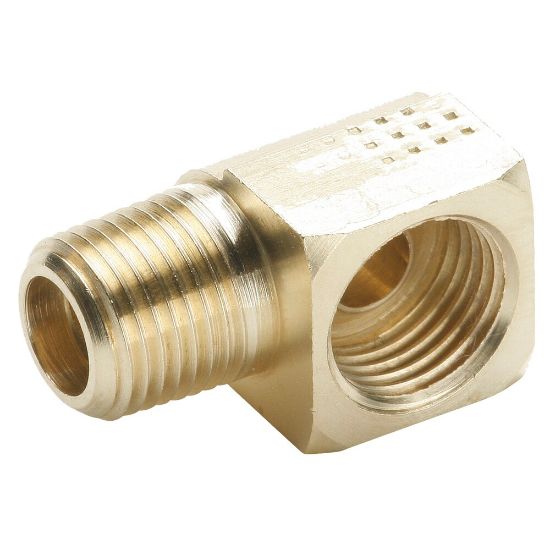

249IFHD-2-2 - Brass Inverted Flare Fittings

Name: 249IFHD-2-2 - Brass Inverted Flare Fittings
SKU: 249IFHD-2-2
Price: 19.35 USD
Availability: InStock

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:

24 in stock

Kansas City, KS	21
Springfield, MO	3

Partner Available:

110 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 249IFHD-2-2

$19.35/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 1 Tube O.D. (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	Male Pipe
Connection 1 Style	Inverted Flare	Style	Flare to Pipe
Body Material	Brass	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-65 °F	Maximum Operating Pressure	2800 psi
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512	Nut Material	Brass, Zinc Chromate Steel
