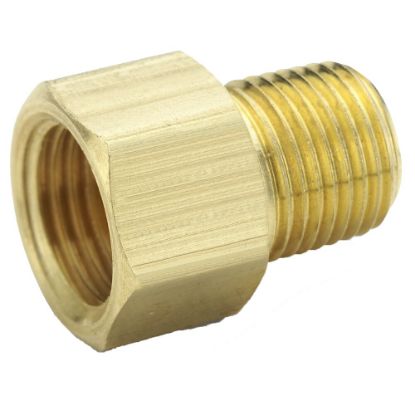

Brass Inverted Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.
Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or fscsales@parker.com for additional information.
Read More...Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or fscsales@parker.com for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 2 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Shape | Connection 1 Tube O.D. (inch) | Connection 2 Style | Connection 1 Style | Style | Body Material | Maximum Operating Temperature | Minimum Operating Temperature | Media | Tube Material | Specifications Met | Maximum Operating Pressure | Nut Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46IFHD-5-2 | 11 in stock | 35 in stock | $8.41/each | EA | 1/8 | na | Connector | 5/16 | Female Pipe | Inverted Flare | Flare to Female Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 83 bar | Brass, Zinc Chromate Steel | ||
| 46IFHD-6-4 | 15 in stock | 29 in stock | $11.39/each | EA | 1/4 | na | Connector | 3/8 | Female Pipe | Inverted Flare | Flare to Female Pipe | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 69 bar | Brass, Zinc Chromate Steel | ||
| 46IFHD-8-6 | 3 in stock | 11 in stock | $35.67/each | EA | 3/8 | na | Connector | 1/2 | Female Pipe | Inverted Flare | Flare to Female Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 750 psi | Brass, Zinc Chromate Steel | ||
| 48IFHD-10-8 | 25 in stock | 21 in stock | $14.08/each | EA | 1/2 | na | Connector | 5/8 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 45 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-12-12 | Backordered | 2 Limited Stock | $20.65/each | EA | 3/4 | na | Connector | 3/4 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 38 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-2-2 | 36 in stock | 117 in stock | $6.95/each | EA | 1/8 | na | Connector | 1/8 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 193 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-3-2 | 1 Limited Stock | 2228 in stock | $2.81/each | EA | 1/8 | na | Connector | 3/16 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 1900 psi | Brass, Zinc Chromate Steel | 0.11037769784172662 lb | |
| 48IFHD-4-2 | 6 in stock | 250 in stock | $2.20/each | EA | 1/8 | na | Connector | 1/4 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 1400 psi | Brass, Zinc Chromate Steel | 0.05518884892086331 lb | |
| 48IFHD-4-4 | 15 in stock | 83 in stock | $3.66/each | EA | 1/4 | na | Connector | 1/4 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 1400 psi | Brass, Zinc Chromate Steel | ||
| 48IFHD-5-2 | 12 in stock | 484 in stock | $2.93/each | EA | 1/8 | na | Connector | 5/16 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 83 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-5-4 | 3 in stock | 162 in stock | $4.00/each | EA | 1/4 | na | Connector | 5/16 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 83 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-6-2 | 5 in stock | 102 in stock | $12.63/each | EA | 1/8 | na | Connector | 3/8 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 1000 psi | Brass, Zinc Chromate Steel | ||
| 48IFHD-6-4 | 2 Limited Stock | 245 in stock | $5.98/each | EA | 1/4 | na | Connector | 3/8 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 1000 psi | Brass, Zinc Chromate Steel | 0.11037769784172662 lb | |
| 48IFHD-6-6 | 20 in stock | 216 in stock | $6.25/each | EA | 3/8 | na | Connector | 3/8 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 69 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-8-4 | 112 in stock | 68 in stock | $19.06/each | EA | 1/4 | na | Connector | 1/2 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 52 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-8-6 | 22 in stock | 135 in stock | $8.72/each | EA | 3/8 | na | Connector | 1/2 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 52 bar | Brass, Zinc Chromate Steel | ||
| 48IFHD-8-8 | 3 in stock | 61 in stock | $13.96/each | EA | 1/2 | na | Connector | 1/2 | Male Pipe | Inverted Flare | Flare to Pipe | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | SAE J512 | 52 bar | Brass, Zinc Chromate Steel |
