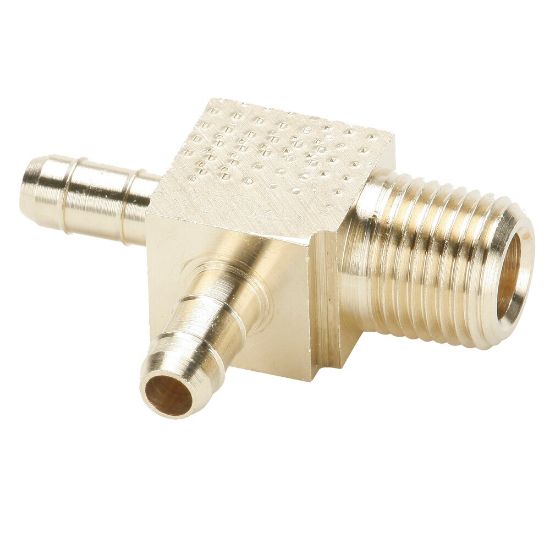

231-6-4 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	27 in stock

SKU 231-6-4

$22.33/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	Run Tee
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Barb
Connection 1 Tube O.D. (inch)	3/8	Style	Tube to Pipe
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Body Material	Brass	Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-53 °C	Tube Material	Polyethylene
Maximum Operating Temperature	90 °F
