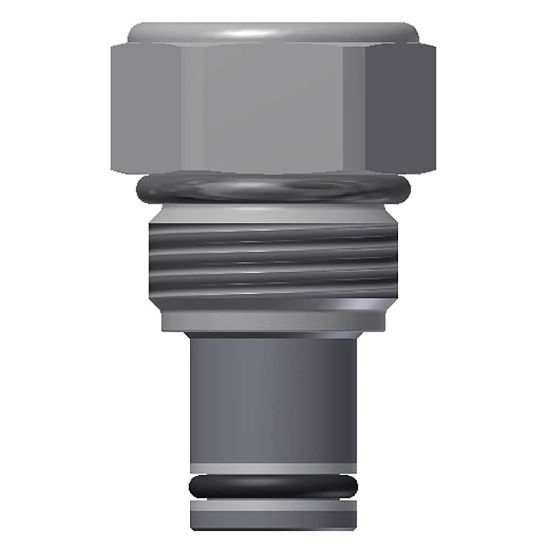

Picture of P08-2 - Cavity Plugs

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

P08-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.
Availability:
2 Limited Stock
Olivette, MO2
Partner Available:37 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU P08-2
$68.73/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAType/ConfigurationAll ports blocked
Seal MaterialNitrileCavity SizeC08
Number of Positions2 wayCavity SizeC08
Valve MaterialAll parts steel. All operating parts hardened steelConfigurationAll ports blocked
Actuation Typen/aFor Fluid TypeMineral-based or synthetic hydraulic fluids
Number of Positions2 wayInstallation Torque36 lb-ft
Seal MaterialNitrileMaximum Operating Pressure350 bar
Body Materialn/aMaximum Operating Temperature+121 °C
Weight0.11 kgMinimum Operating Temperature-34 °C
Maximum Flow Raten/aFlow Raten/a
Customers who bought this item also bought

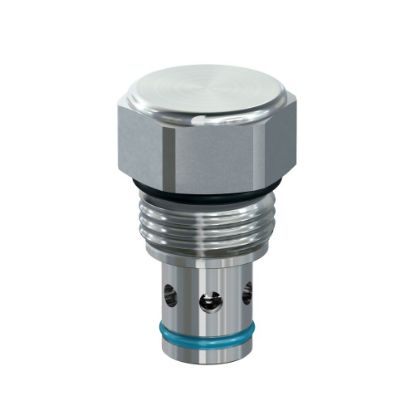

Picture of CVH081P - Standard Check Valves
