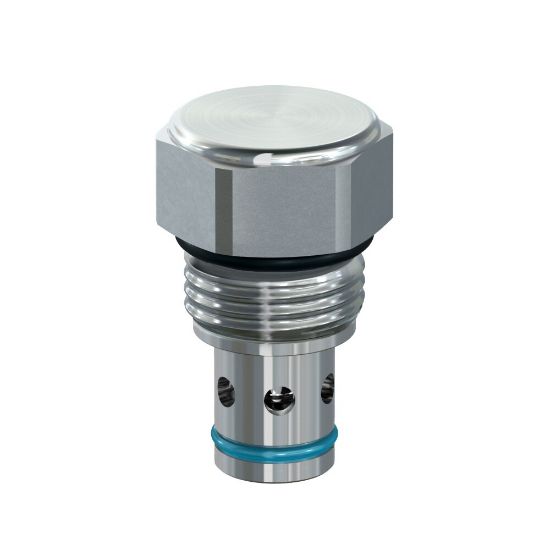

Picture of CVH081P - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CVH081P - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
22 in stock
Olivette, MO20
Wichita, KS2
Partner Available:268 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU CVH081P
$17.84/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialD-Ring (Standard)
Cracking Pressure5 PSI, 0.3 BARMaximum Flow Rate10 GAL/MIN, 38 L/MIN
Flow Raten/aBody Materialn/a
For Fluid TypeMineral-based Hydraulic FluidsValve MaterialHardened Steel
Filter Efficiency RatingSAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-37 °CMaximum Operating Temperature93 °C
Weight0.1 kgMaximum Operating Pressure350 bar
Cracking Pressure5 psiActuation TypePressure Sensing
Cavity SizeC08-2Maximum Inlet Pressure Rating5000 psi
Seal MaterialD-Ring (Standard)Maximum Flow Rate10 Gal/min
Leak Rate2Flow Direction1-2 Free Flow
FunctionStandard CheckInstallation Torque43-49 Nm
