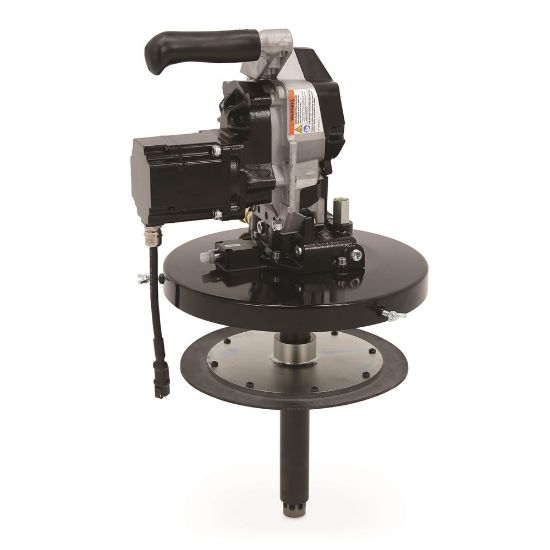

CD1031

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1031

$4,940.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Input Amperage	10 A
Weight	66 lb	Maximum Working Pressure	3500 psi
Overall Depth	13.9 Inch	Motor Type	Brushless DC
Sound Power Level	<80 dB(A)	Approvals	CE;RCM
Maximum Voltage	30 VDC	Low Level Switching Current	0.2 A
Control Options	Integrated electrical motor controller	Minimum Voltage	18 VDC
Maximum Cycle Rate	64 CPM	Throat Seal Type	Hythane 181
Minimum Operating Temperature	-40 deg F	Maximum cST Grade	NLGI #2 Grease cST
Voltage	24 VDC	Overall Height	39.0 Inch
Low Level Carry Current	0.02 A	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Low Level Switch Rating	24 VDC
Number of Pump Elements	1	IP Rating	IP69K
Maximum NLGI Grade	2	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Power Rating	0.25 HP	Overall Width	11.5 Inch
Maximum Fluid Output Pressure	3500 PSI	Power Connection Type	Deutsch DT04-2P Housing;M12
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Lower Type	Shovel	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
