*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

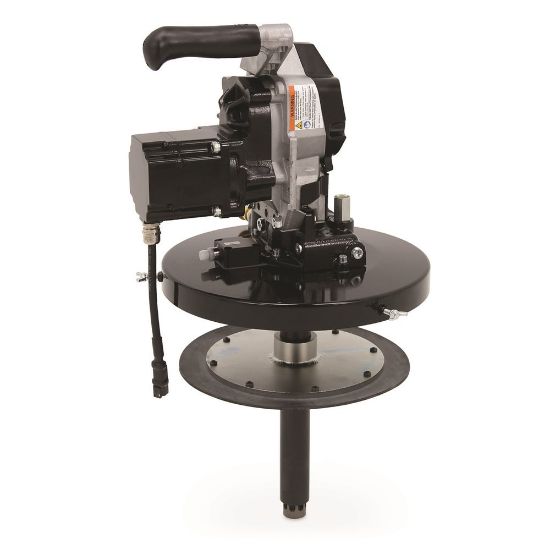

CD1032

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1032

$4,997.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	66 lb	Maximum Input Amperage	10 A
Overall Width	11.5 Inch	IP Rating	IP69K
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Power Rating	0.25 HP
Maximum cST Grade	NLGI #2 Grease cST	Minimum Operating Temperature	-40 deg F
Maximum Cycle Rate	64 CPM	Minimum Voltage	18 VDC
Lower Type	Shovel	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Power Connection Type	Deutsch DT04-2P Housing;M12	Maximum NLGI Grade	2
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Low Level Switch Rating	24 VDC
Number of Pump Elements	1	Maximum Voltage	30 VDC
Sound Power Level	<80 dB(A)	Approvals	CE;RCM
Motor Type	Brushless DC	Maximum Fluid Output Pressure	3500 PSI
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Control Options	Integrated electrical motor controller	Low Level Carry Current	0.02 A
Fluid Outlet Thread Gender	Female	Overall Height	39.0 Inch
Throat Seal Type	Hythane 181	Overall Depth	13.9 Inch
Voltage	24 VDC
