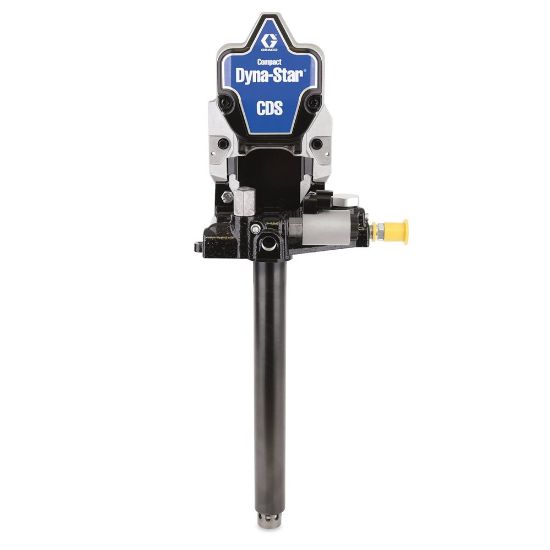

CD1100

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1100

$4,161.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Weight	27 lb
Vent Valve Maximum Operating Current	2 A	Control Options	Integrated electrical motor controller
Maximum Fluid Output Pressure	3500 PSI	Overall Depth	7.63 Inch
Power Connection Type	Deutsch DT04-2P Housing;M12	Overall Height	23.9 Inch
Maximum Continuous Cycle Rate	64 CPM	Maximum Operating Temperature	149 deg F
Overall Width	9.8 Inch	Voltage	24 VDC
Motor Type	Brushless DC	Sound Power Level	<80 dB(A)
Approvals	CE;RCM	Maximum Voltage	30 VDC
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Maximum Cycle Rate	64 CPM
Minimum Voltage	18 VDC	Power Rating	0.25 HP
Throat Seal Type	Hythane 181	Minimum Operating Temperature	-40 deg F
Fluid Outlet Thread Gender	Female	Maximum cST Grade	NLGI #2 Grease cST
Number of Pump Elements	1	Lower Type	Shovel
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Maximum NLGI Grade	2	IP Rating	IP69K
