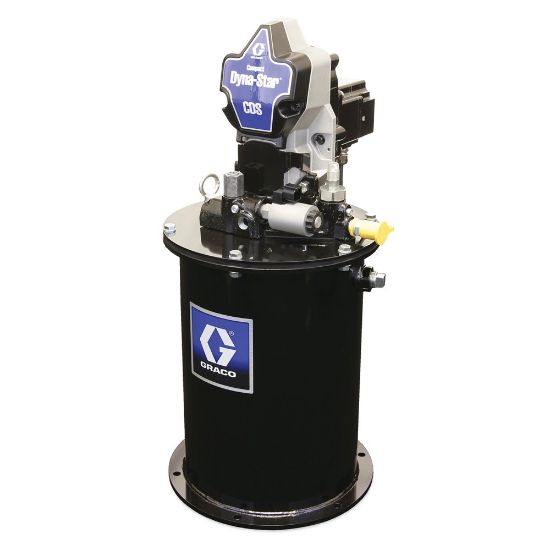

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CD1114

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1114

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	66 lb
Level Reporting Sensor Maximum Signal	10 VDC	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Minimum Voltage	18 VDC
Maximum cST Grade	NLGI #2 Grease cST	Power Rating	0.25 HP
Throat Seal Type	Hythane 181	Minimum Operating Temperature	-40 deg F
Maximum Cycle Rate	64 CPM	Reservoir Material	Steel
Overall Height	39.0 Inch	Low Level Carry Current	0.02 A
Voltage	24 VDC	Fluid Outlet Thread Gender	Female
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Low Level Switch Rating	24 VDC
Number of Pump Elements	1	Maximum NLGI Grade	2
IP Rating	IP69K	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Overall Width	11.5 Inch	Reservoir Size	12 L
Maximum Fluid Output Pressure	3500 PSI	Maximum Operating Temperature	149 deg F
Maximum Continuous Cycle Rate	64 CPM	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Lower Type	Shovel	Power Connection Type	Deutsch DT04-2P Housing;M12
Sound Power Level	<80 dB(A)	Overall Depth	13.9 Inch
Motor Type	Brushless DC	Approvals	CE;RCM
Maximum Voltage	30 VDC	Vent Valve Maximum Operating Current	2 A
Control Options	Integrated electrical motor controller
