*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

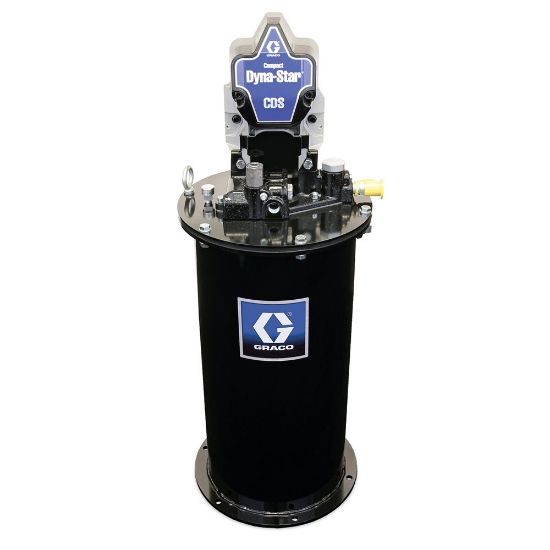

CD2022

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2022

$5,776.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	73 lb
Level Reporting Sensor Maximum Signal	10 VDC	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Power Rating	0.25 HP
Minimum Operating Temperature	-40 deg F	Maximum Cycle Rate	64 CPM
Minimum Voltage	18 VDC	Maximum cST Grade	NLGI #2 Grease cST
Fluid Outlet Thread Gender	Female	Low Level Carry Current	0.02 A
Throat Seal Type	Hythane 181	Lower Type	Shovel
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Number of Pump Elements	1
Maximum NLGI Grade	2	Overall Width	11.5 Inch
IP Rating	IP69K	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Low Level Switch Rating	24 VDC	Maximum Fluid Output Pressure	3500 PSI
Maximum Operating Temperature	149 deg F	Overall Height	50.9 Inch
Control Options	Integrated electrical motor controller	Reservoir Size	20 L
Maximum Continuous Cycle Rate	64 CPM	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Power Connection Type	Deutsch DT04-2P Housing;M12	Overall Depth	13.9 Inch
Reservoir Material	Steel	Voltage	24 VDC
Sound Power Level	<80 dB(A)	Maximum Voltage	30 VDC
Approvals	CE;RCM	Motor Type	Brushless DC
