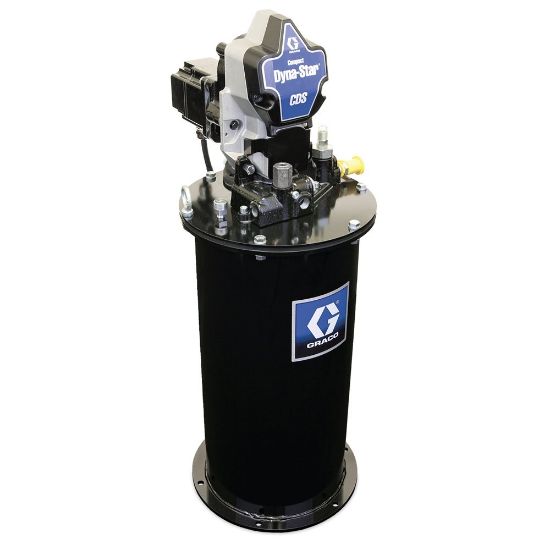

CD2023

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2023

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Weight	73 lb
Power Connection Type	Deutsch DT04-2P Housing;M12	Reservoir Size	20 L
Maximum Continuous Cycle Rate	64 CPM	Maximum Operating Temperature	149 deg F
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Lower Type	Shovel	Motor Type	Brushless DC
Sound Power Level	<80 dB(A)	Maximum Voltage	30 VDC
Overall Depth	13.9 Inch	Control Options	Integrated electrical motor controller
Approvals	CE;RCM	Low Level Switching Current	0.2 A
Overall Height	50.9 Inch	Maximum Fluid Output Pressure	3500 PSI
Throat Seal Type	Hythane 181	Minimum Operating Temperature	-40 deg F
Fluid Outlet Thread Gender	Female	Minimum Voltage	18 VDC
Maximum cST Grade	NLGI #2 Grease cST	Voltage	24 VDC
Reservoir Material	Steel	Low Level Carry Current	0.02 A
Low Level Switch Rating	24 VDC	Maximum NLGI Grade	2
Number of Pump Elements	1	IP Rating	IP69K
Maximum Cycle Rate	64 CPM	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Overall Width	11.5 Inch	Power Rating	0.25 HP
