*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

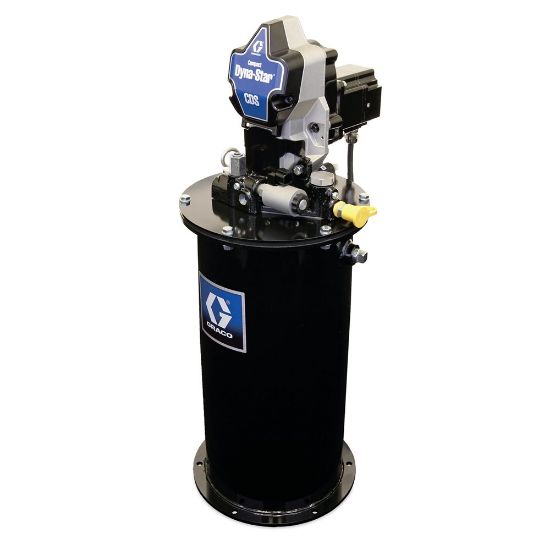

CD2122

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2122

$6,013.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Level Reporting Sensor Maximum Signal	10 VDC
Maximum Working Pressure	3500 psi	Weight	73 lb
Maximum Input Amperage	10 A	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Overall Width	11.5 Inch	IP Rating	IP69K
Minimum Voltage	18 VDC	Power Rating	0.25 HP
Maximum Cycle Rate	64 CPM	Minimum Operating Temperature	-40 deg F
Maximum cST Grade	NLGI #2 Grease cST	Lower Type	Shovel
Power Connection Type	Deutsch DT04-2P Housing;M12	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Low Level Switch Rating	24 VDC
Number of Pump Elements	1	Maximum NLGI Grade	2
Approvals	CE;RCM	Maximum Voltage	30 VDC
Motor Type	Brushless DC	Sound Power Level	<80 dB(A)
Reservoir Size	20 L	Maximum Fluid Output Pressure	3500 PSI
Vent Valve Maximum Operating Current	2 A	Maximum Operating Temperature	149 deg F
Overall Height	50.9 Inch	Maximum Continuous Cycle Rate	64 CPM
Control Options	Integrated electrical motor controller	Throat Seal Type	Hythane 181
Low Level Carry Current	0.02 A	Fluid Outlet Thread Gender	Female
Reservoir Material	Steel	Voltage	24 VDC
Overall Depth	13.9 Inch
