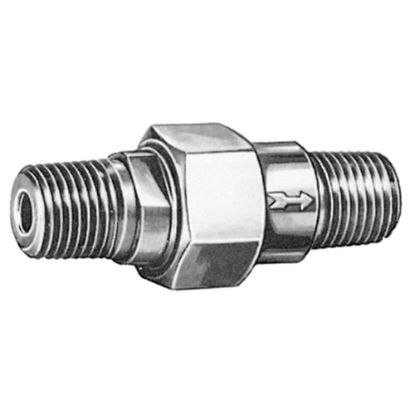

Check Valve - 3047 Series (male to male)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 3047 series check valves allow free flow in one direction and provide positive checked (zero flow) in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in male to male connection only.
Markets
• General Industrial
• Automotive
• Factory Automation
Features/Benefits
• Available with NPTF Ports
Applications
• General Industrial
• Conveyance
• Packaging
• Assembly
| Action | SKU | Availability | Partner Available | Price | UOM | Port Size (inch) | Media | Port Type | Lubricant | Body Material | Mounting Type | Options | Flow Rate | Port Size | Seal Material | Needle Material | Flow Coefficient | Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 030470099 | 1 Limited Stock | 66 in stock | $50.31/each | EA | 1/4 | Air | NPT | None | Brass | Inline | - | 30 (free flow) SCFM | 1/4" | Nitrile | Brass, Stainless Steel | 0.56 (free flow) Cv | 0- 17 bar |
