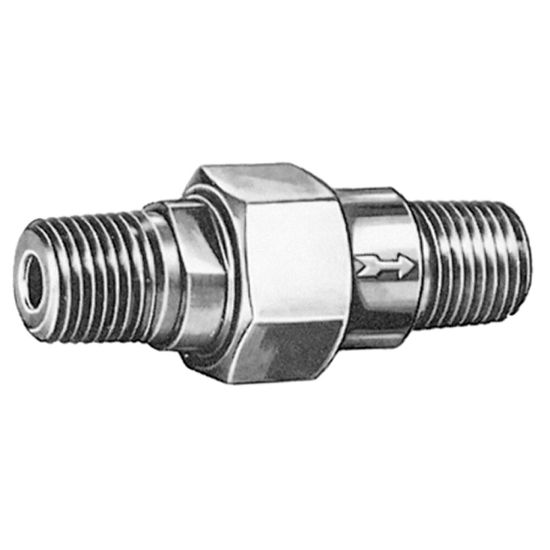

030470099 - Check Valve - 3047 Series (male to male)

Name: 030470099 - Check Valve - 3047 Series (male to male)
SKU: 030470099
Price: 50.31 USD
Availability: LimitedAvailability

3047 series check valves allow free flow in one direction and provide positive checked flow in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in male to male connection only.

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

66 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 030470099

$50.31/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	1/4
Media	Air	Port Type	NPT
Lubricant	None	Body Material	Brass
Mounting Type	Inline	Options	-
Flow Rate	30 (free flow) SCFM	Port Size	1/4"
Seal Material	Nitrile	Needle Material	Brass, Stainless Steel
Flow Coefficient	0.56 (free flow) Cv	Operating Pressure	0- 17 bar

Product resources

Literature and Reference Materials

0600P Catalog_Accessories (PDF)
