Check Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

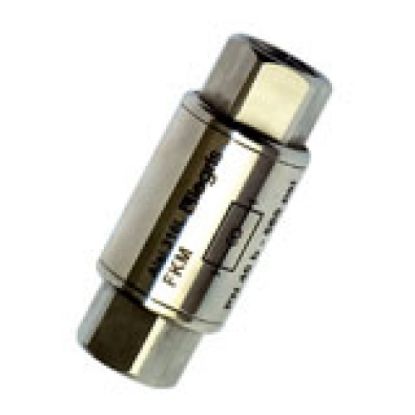

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection. Using different color codes for supply and exhaust versions, these valves avoid any mistakes in the installation process. By making the installation safer and more intuitive, installation costs are reduced.
Markets:
• Factory/Process Automation
• Pneumatic
• Petrochemical
• Water and Beverage
• Packaging
• Automotive
• Food Processing
Features/Benefits:
PLCK & VC Check Valves
• Lip seals for improved sealing performance
• Excellent vibration resistance
• Compact
• Lightweight
• Symbol showing the operating direction of flow
• Safe installation with color codes:
Green push-button: supply version
Red push-button: exhaust version
Applications:
• Machine tools
• Assembly
• Processing
• Pneumatic circuits safety
Read More...Markets:
• Factory/Process Automation
• Pneumatic
• Petrochemical
• Water and Beverage
• Packaging
• Automotive
• Food Processing
Features/Benefits:
PLCK & VC Check Valves
• Lip seals for improved sealing performance
• Excellent vibration resistance
• Compact
• Lightweight
• Symbol showing the operating direction of flow
• Safe installation with color codes:
Green push-button: supply version
Red push-button: exhaust version
Applications:
• Machine tools
• Assembly
• Processing
• Pneumatic circuits safety
| Action | SKU | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Seal Material | Gripping Ring Material | Body Material | Media | Valve Configuration | Connection 1 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Maximum Operating Pressure | Maximum Operating Temperature | Shape | Product Style | Connection Type | Thread Material | Connection 1 Size | Connection 2 Size | Cracking Pressure | Connection 2 Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4892 13 13 | Backordered | Backordered | $154.45/each | EA | -4 °F | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | N/A | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | BSPP | 316L Stainless Steel | BSPP | BSPP | 3.6 psi | 1/4 mm | |
| 4892 17 17 | Backordered | Backordered | $176.55/each | EA | -20 °C | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 3/8 mm | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | BSPP | 316L Stainless Steel | BSPP | BSPP | 3.6 psi | N/A | |
| 4892 21 21 | Backordered | Backordered | $186.47/each | EA | -4 °F | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 1/2 mm | N/A | N/A | 39.9 bar | 356 °F | Threaded | Pipe to Pipe | BSPP | 316L Stainless Steel | BSPP | BSPP | 3.6 psi | 1/2 mm | |
| 4892 27 27 | Backordered | Backordered | $237.83/each | EA | -4 °F | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | N/A | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | BSPP | 316L Stainless Steel | BSPP | BSPP | 3.6 psi | 3/4 mm | |
| 4892 34 34 | Backordered | Backordered | $333.89/each | EA | -20 °C | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 1 mm | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | BSPP | 316L Stainless Steel | BSPP | BSPP | 3.6 psi | N/A | |
| 4895 11 11 | Backordered | 1 Limited Stock | $154.45/each | EA | -20 °C | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 1/8 inch | N/A | N/A | 39.9 bar | 356 °F | Threaded | Pipe to Pipe | NPT | 316L Stainless Steel | NPT | NPT | 3.6 psi | N/A | |
| 4895 14 14 | Backordered | Backordered | $136.99/each | EA | -20 °C | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 1/4 inch | N/A | N/A | 39.9 bar | 356 °F | Threaded | Pipe to Pipe | NPT | 316L Stainless Steel | NPT | NPT | 3.6 psi | N/A | |
| 4895 18 18 | Backordered | Backordered | $176.55/each | EA | -4 °F | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 3/8 inch | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | NPT | 316L Stainless Steel | NPT | NPT | 3.6 psi | 3/8 inch | |
| 4895 22 22 | Backordered | Backordered | $165.38/each | EA | -4 °F | FKM | Stainless Steel | 316L Stainless Steel | Compressed Air | One Way | 1/2 inch | N/A | N/A | 580 psi | 356 °F | Threaded | Pipe to Pipe | NPT | 316L Stainless Steel | NPT | NPT | 3.6 psi | N/A | |
| 68PLCK-4M-M5 | Backordered | Backordered | $24.87/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | N/A | N/A | 10 bar | 65 °C | Threaded | Tube to Pipe | Metric | Plated Brass | Push-to-connect | Metric | 7 psi | M5x0.8 mm | |
| 68PLCK-6M-2G | Backordered | Backordered | $26.98/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | N/A | N/A | 10 bar | 65 °C | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | N/A | |
| 68PLCK-6M-4G | Backordered | Backordered | $28.02/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 6 mm | N/A | 145 psi | 65 °C | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | N/A | |
| 68PLCK-8M-2G | Backordered | Backordered | $33.26/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 8 mm | N/A | 145 psi | 65 °C | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | N/A | |
| 68PLCK-8M-4G | Backordered | 8 in stock | $35.17/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 8 mm | N/A | 145 psi | 150 °F | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | N/A | |
| 68PLCKI-4M-0 | Backordered | Backordered | $30.03/each | EA | 34 °F | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 5/32 inch | N/A | 145 psi | 150 °F | Threaded | Tube to Pipe | UNF | Plated Brass | Push-to-connect | UNF | 7 psi | 10-32 inch | |
| 68PLCKI-6M-2G | Backordered | Backordered | $29.81/each | EA | 34 °F | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 6 mm | N/A | 10 bar | 150 °F | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | 1/8 mm | |
| 68PLCKI-8M-2G | Backordered | Backordered | $32.85/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 8 mm | N/A | 145 psi | 65 °C | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | N/A | |
| 68PLCKI-8M-4G | Backordered | Backordered | $30.16/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 8 mm | N/A | 145 psi | 65 °C | Threaded | Tube to Pipe | BSPP | Plated Brass | Push-to-connect | BSPP | 7 psi | 1/4 mm | |
| W68PLCK-12M-6R | 8 in stock | Backordered | $38.62/each | EA | 1 °C | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | N/A | N/A | 10 bar | 65 °C | Threaded | Tube to Pipe | BSPT | Plated Brass | Push-to-connect | BSPT | 7 psi | N/A | |
| W68PLCK-4-2 | Backordered | Backordered | $33.77/each | EA | 34 °F | Nitrile | Stainless Steel | Nylon | Compressed Air | One Way | N/A | 1/4 inch | N/A | 145 psi | 150 °F | Threaded | Tube to Pipe | NPT | Plated Brass | Push-to-connect | NPT | 7 psi | N/A |
