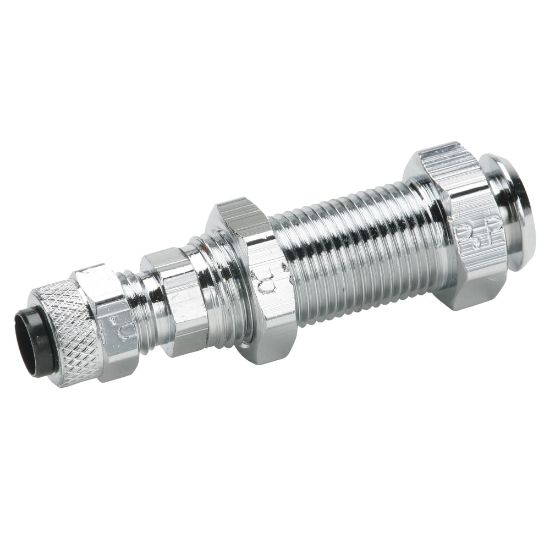

392P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Name: 392P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite
SKU: 392P-4-4
Price: 55.29 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

45 in stock

TOPEKA, KS	42
Olivette, MO	3

Partner Available:

188 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 392P-4-4

$55.29/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Body Material	Chrome Plated Brass
Shape	Bulkhead Body	Style	Tube to Plug-in stem
Connection 2 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	1/4
Minimum Operating Temperature	0 °F	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	150 psi	Dimensional Weight	0.5518884892086331 lb
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	O-Ring Material	Buna N
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
Sleeve Material	Acetal Copolymer
