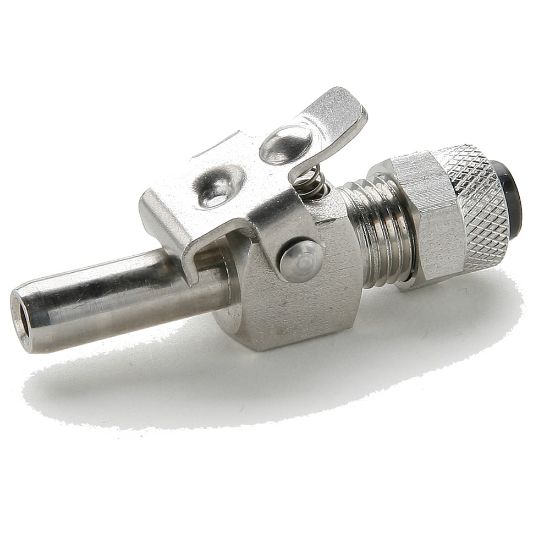

Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 393PSS-6-6

Name: Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 393PSS-6-6
SKU: 393PSS-6-6

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

Backordered

SKU 393PSS-6-6

$293.26

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/8
Style	Tube to Plug-in stem	Connection 2 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	3/8	Shape	Through Type Insert
Division	Fluid System Connectors Division	Body Material	Stainless Steel
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	0 °F
O-Ring Material	Fluorocarbon	Maximum Operating Pressure	10 bar
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Application	Dental, Packaging, Laboratory, Car wash
Nut Material	316 Stainless Steel	Sleeve Material	Acetal Copolymer
