Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 394P-6-6

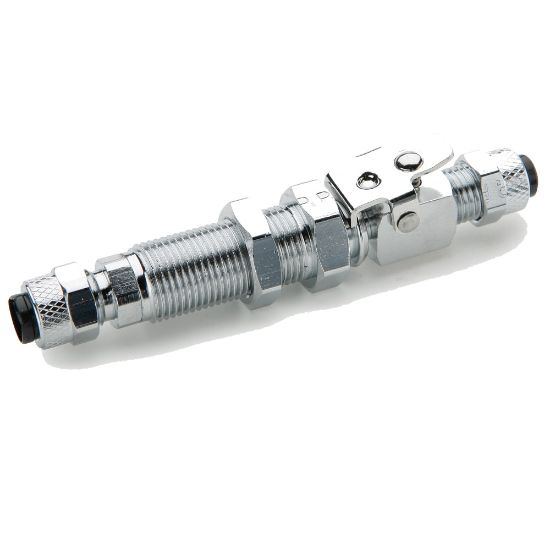

Name: Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 394P-6-6
SKU: 394P-6-6
Price: 128.09 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:

5 in stock

Kansas City, KS

SKU 394P-6-6

$128.09

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	3/8	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Connection 1 Tube O.D. (inch)	3/8	Body Material	Chrome Plated Brass
Connection 2 Insert Diameter (inch)	na	Shape	Bulkhead Single end shutoff
Division	Fluid System Connectors Division	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	150 psi	Minimum Operating Temperature	-17 °C
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	O-Ring Material	Buna N
Application	Dental, Packaging, Laboratory, Car wash	Nut Material	Chrome Plated Brass
Body Material	Chrome Plated Brass	Sleeve Material	Acetal Copolymer

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)

Compliance, Certifications & Safety

Literature and Reference Materials
