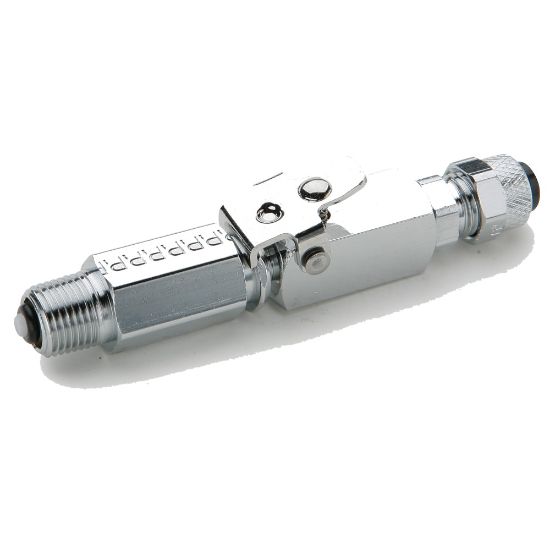

Picture of Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 398PD-4-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 398PD-4-2

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
Availability:
Backordered
SKU 398PD-4-2
$78.03
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Thread Size (inch)1/8
Connection 2 Tube O.D. (inch)naConnection 1 StyleCompression
Connection 1 Tube O.D. (inch)1/4StyleTube to Pipe
Connection 2 StyleMale PipeBody MaterialChrome Plated Brass
Connection 2 Insert Diameter (inch)naShapeDouble End Shutoff
DivisionFluid System Connectors DivisionMaximum Operating Temperature65 °C
Maximum Operating Pressure150 psiMinimum Operating Temperature-17 °C
Tube MaterialPolyethylene, Nylon, Polypropylene, VinylApplicationPackaging
O-Ring MaterialBuna NNut MaterialChrome Plated Brass
Body MaterialChrome Plated BrassSleeve MaterialAcetal Copolymer
Dimensional Weight0.4357014388489209 lb
