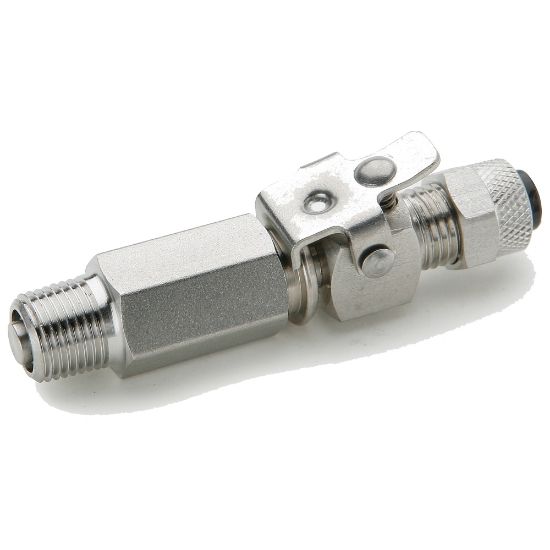

398PSS-4-2 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 398PSS-4-2

$387.77/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Style	Male Pipe
Connection 2 Insert Diameter (inch)	na	Shape	Single End Shutoff
Body Material	Stainless Steel	Maximum Operating Temperature	150 °F
Minimum Operating Temperature	0 °F	O-Ring Material	Fluorocarbon
Maximum Operating Pressure	150 psi	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Nut Material	316 Stainless Steel	Sleeve Material	Acetal Copolymer
