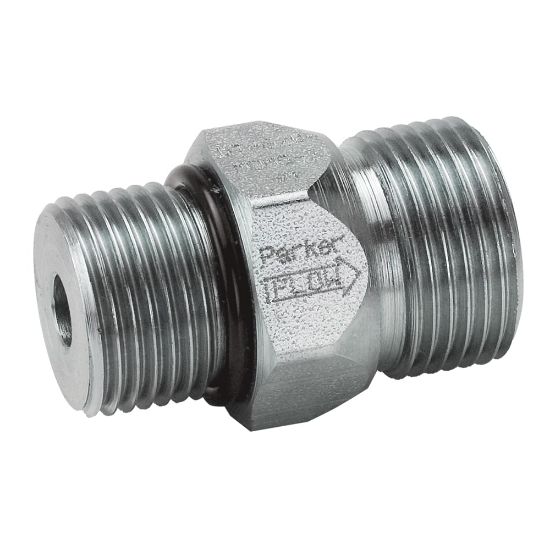

DT-1250-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Name: DT-1250-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series
SKU: DT-1250-MOMS-5
Price: 167.34 USD
Availability: LimitedAvailability

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DT-1250-MOMS-5

$167.34/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Size (inch)	1 5/8 - 12 UN
Cracking Pressure (psi)	5	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male Seal-Lok	Outlet Port Size (inch)	1 11/16 - 12 UN
Maximum Working Pressure (psi)	4000	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Configuration	n/a	Mounting Type	Threaded
Actuation Type	Mechanical	Maximum Operating Pressure	4000 psi
Maximum Flow Rate	n/a	Flow Direction	n/a
Dimensional Weight	0.22945143884892086 lb	Seat Type	Metal Seal
Connection Type	Male ORB to Male Seal-Lok ORFS	Seal Material	Metal & Elastomeric
Body Size	1 1/4 inch	Connection Size	1- 11/16 - 12 UN
