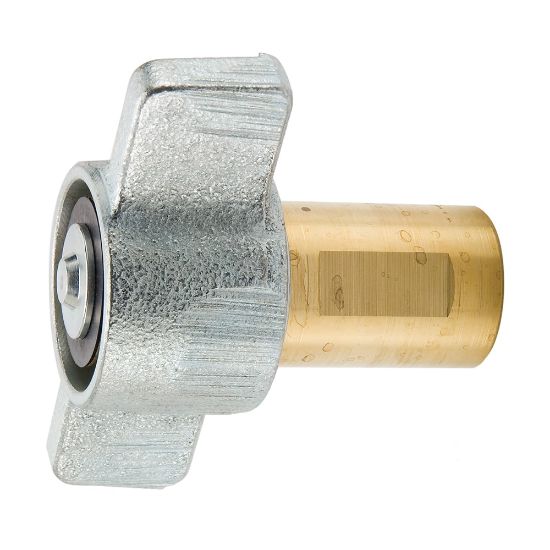

6125-08 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series

Name: 6125-08 - Connect Under Pressure, High Flow Quick Couplings - 6100 Series
SKU: 6125-08
Price: 133.65 USD
Availability: LimitedAvailability

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Availability:

6 in stock

Springfield, MO	2
WICHITA, KS	1
Kansas City, KS	1
Peoria, IL	1
Olivette, MO	1

Partner Available:

181 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 6125-08

$133.65/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14	Body Size	3/4 Inch
Sleeve Type	Wing nut	Minimum Operating Temperature	-40 °F
Body Material	Brass	Dimensional Weight	0.31160071942446044 lb
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Connection Type	Female NPTF
Flow Rate	12 Gal/min	Valve Type	Flat Face
Hex Size	1.16 inch	Hex Size 2	4.06 inch
Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
