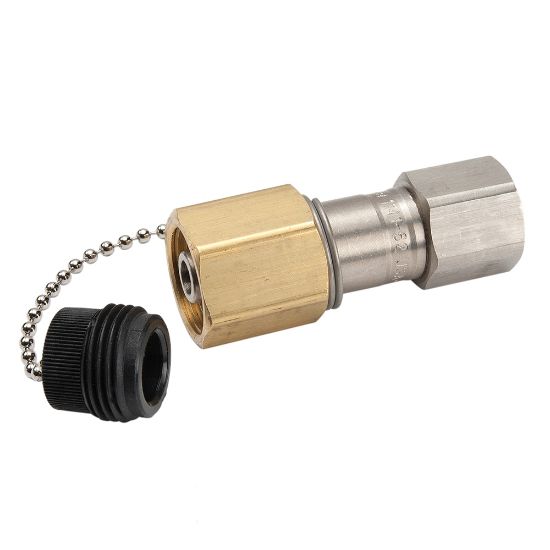

1141-62 - Connect Under Pressure Stainless Quick Couplings - 1141 Series

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	208 in stock

SKU 1141-62

$104.85/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Maximum Operating Pressure	10000 psi	Maximum Operating Temperature	180 °F
Hex Size	0.88	Body Size	1/4 inch
Valve Type	Poppet	Body Material	Stainless Steel 303 with Brass Sleeve
Seal Material	Polyurethane	Connection Type	Female NPTF
Maximum Flow Rate	3 Gal/min	Connection Thread Size	1/4"-18 inch
Minimum Operating Temperature	-30 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
