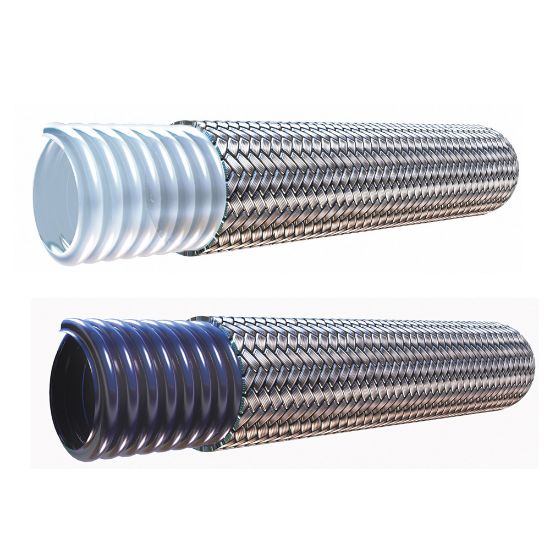

Picture of 06-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

06-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:Backordered
SKU 06-SCW
$25.57/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose StyleNatural
Hose I.D. (inch)3/8Cover Materialn/a
Compatible FittingPAGE SeriesSpecifications MetUSP Class VI (compliant core tube)
Vacuum Pressure Rating28 Inch-HgHose Inner Tube MaterialPolytetrafluoroethylene (PTFE)
Hose Reinforcement MaterialBraid of 304 Stainless SteelMaximum Operating Temperature500 °F
Minimum Operating Temperature-100 °FDesign Factor4:1
Size-6MediaWater
Weight0.1 lb/ftInside Diameter3/8 inch
Outside Diameter0.560 inchMinimum Bend Radius25 mm
Maximum Operating Pressure1500 psi
