Crimp Style Hydraulic Hose Fitting - 43 Series Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 43 Series of hydraulic hose fittings from Parker Hannifin is renowned for its ease of assembly, wide selection of shape and end formations, hose compatibility, and extensive use across markets. This cost-effective line of permanent crimp-style hydraulic fittings is designed for use with Parkcrimp crimpers to deliver “bite-the-wire” sealing and holding power. When used with Parker’s No-Skive hoses, 43 Series fittings can be assembled without removing the outer hose cover, eliminating premature hose failure caused by skiving too long or too short.
43 Series fittings feature one-piece construction with chromium-6-free plating, and are compatible with petroleum-based hydraulic fluids and lubricating oils and with phosphate-ester-based hydraulic fluids. Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return. Available in sizes from ¼-inch to 2 inches in a wide variety of end formations, the 43 Series is offered in more than 2,500 configurations and is available around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• Easy push on force
• Imperial HEX
• Stainless steel option available
• Wide range of end configurations
• One piece reduces complexity and leakage path
• No-Skive technology offers easy, efficient, and safe production processes
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Phosphate-ester base hydraulic fluids
Compatible Hoses:
• 187TC/ST (-4 through -16)
• 301LT
• 302
• 304
• 351TC, 351ST
• 387/TC/ST (-4 through -20 only)
• 422
• 424
• 426
• 431
• 436
• 451TC, 451ST
• 471TC, 471ST
• 472TC
• 482TC, 482ST
• 487/TC/ST (-4 through -16 only)
• 722/TC/ST
• 787/TC/ST (-4 and -6 only)
• 797/TC/ST (-4 and -6 only)
• 881
• GST II Series 7092
Read More...43 Series fittings feature one-piece construction with chromium-6-free plating, and are compatible with petroleum-based hydraulic fluids and lubricating oils and with phosphate-ester-based hydraulic fluids. Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return. Available in sizes from ¼-inch to 2 inches in a wide variety of end formations, the 43 Series is offered in more than 2,500 configurations and is available around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• Easy push on force
• Imperial HEX
• Stainless steel option available
• Wide range of end configurations
• One piece reduces complexity and leakage path
• No-Skive technology offers easy, efficient, and safe production processes
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Phosphate-ester base hydraulic fluids
Compatible Hoses:
• 187TC/ST (-4 through -16)
• 301LT
• 302
• 304
• 351TC, 351ST
• 387/TC/ST (-4 through -20 only)
• 422
• 424
• 426
• 431
• 436
• 451TC, 451ST
• 471TC, 471ST
• 472TC
• 482TC, 482ST
• 487/TC/ST (-4 through -16 only)
• 722/TC/ST
• 787/TC/ST (-4 and -6 only)
• 797/TC/ST (-4 and -6 only)
• 881
• GST II Series 7092
| Action | SKU | Availability | Partner Available | Price | Shape | Materials of Construction | Port Connection | Hose I.D. (size) | Hex Type | Product Style | Division | Port Size | Product Style | Shape | Disclaimer | Flange Size | Nut Hex Size | Connection Size | Back-Up Hex Size | Banjo Port Diameter | Hose Inside Diameter | Materials of Construction | Nominal Inside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

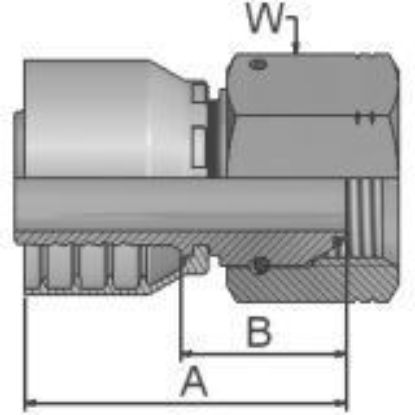

| 1EA43-8-8 | Backordered | 99 in stock | $31.16/each | Straight | Steel | 1/2" | -8 | Metric | Female BSP Parallel Pipe - Swivel (60° Cone with O-Ring) | Hose Products Division | 1/2 inch | Female BSP Parallel Pipe - Swivel - DKOR (60° Cone) | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/2 inch | Steel | DN 12 | |

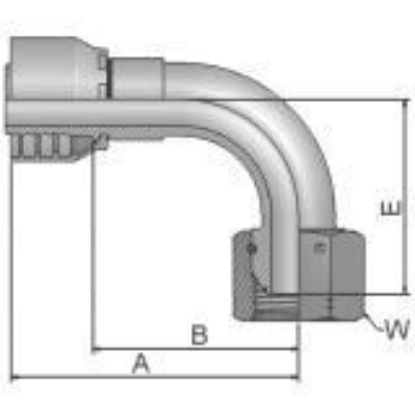

| 1EC43-4-4 | Backordered | Backordered | $37.72/each | Elbow 90° | Steel | 1/4" | -4 | Metric | Female BSP Parallel Pipe - Swivel (60° Cone with O-Ring) | Hose Products Division | 1/4 inch | Female BSP Parallel Pipe - Swivel - DKOR (60° Cone) | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/4 inch | Steel | DN 6 | |
| 1EN43-12-6 | Backordered | 298 in stock | $8.79/each | Straight | Steel | 12 mm | -6 | n/a | Male UPTC | Hose Products Division | 12 mm | Male UPTC | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 3/8 inch | Steel | ||
| 1EN43-15-8 | Backordered | 155 in stock | $11.92/each | Straight | Steel | 15 mm | -8 | n/a | Male UPTC | Hose Products Division | 15 mm | Male UPTC | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/2 inch | Steel | ||
| 1EN43-18-10 | Backordered | Backordered | $22.92/each | Straight | Steel | 18 mm | -10 | n/a | Male UPTC | Hose Products Division | 18 mm | Male UPTC | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -10 (Size) | Steel | ||
| 1EN43-22-12 | Backordered | 1 Limited Stock | $22.70/each | Straight | Steel | 22 mm | -12 | n/a | Male UPTC | Hose Products Division | 22 mm | Male UPTC | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 3/4 inch | Steel | ||
| 1EN43-8-4 | Backordered | 209 in stock | $8.23/each | Straight | Steel | 8 mm | -4 | n/a | Male UPTC | Hose Products Division | 8 mm | Male UPTC | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -4 (Size) | Steel | ||
| 1ET43-12-6 | Backordered | 2 Limited Stock | $21.22/each | Elbow 90° | Steel | 12 mm | -6 | n/a | Male UPTC | Hose Products Division | 12 mm | Male UPTC | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 3/8 inch | Steel | ||
| 1ET43-15-8 | Backordered | Backordered | $25.23/each | Elbow 90° | Steel | 15 mm | -8 | n/a | Male UPTC | Hose Products Division | 15 mm | Male UPTC | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/2 inch | Steel | ||
| 1ET43-18-10 | 15 in stock | Backordered | $33.27/each | Elbow 90° | Steel | 18 mm | -10 | n/a | Male UPTC | Hose Products Division | 18 mm | Male UPTC | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -10 (Size) | Steel | ||
| 1ET43-22-12 | 1 Limited Stock | 1 Limited Stock | $45.24/each | Elbow 90° | Steel | 22 mm | -12 | n/a | Male UPTC | Hose Products Division | 22 mm | Male UPTC | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 3/4 inch | Steel | ||
| 1ET43-8-4 | Backordered | 56 in stock | $19.67/each | Elbow 90° | Steel | 8 mm | -4 | n/a | Male UPTC | Hose Products Division | 8 mm | Male UPTC | Elbow 90° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -4 (Size) | Steel | ||
| 1EU43-12-6 | 8 in stock | 7 in stock | $20.85/each | Elbow 45° | Steel | 12 mm | -6 | n/a | Male UPTC | Hose Products Division | 12 mm | Male UPTC | Elbow 45° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 3/8 inch | Steel | ||
| 1EU43-15-8 | Backordered | 38 in stock | $23.42/each | Elbow 45° | Steel | 15 mm | -8 | n/a | Male UPTC | Hose Products Division | 15 mm | Male UPTC | Elbow 45° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/2 inch | Steel | ||
| 1EU43-18-10 | Backordered | Backordered | $41.88/each | Elbow 45° | Steel | 18 mm | -10 | n/a | Male UPTC | Hose Products Division | 18 mm | Male UPTC | Elbow 45° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -10 (Size) | Steel | ||
| 1EU43-22-12 | Backordered | Backordered | $46.66/each | Elbow 45° | Steel | 22 mm | -12 | n/a | Male UPTC | Hose Products Division | 22 mm | Male UPTC | Elbow 45° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | -12 (Size) | Steel | ||
| 1EU43-8-4 | Backordered | 24 in stock | $20.93/each | Elbow 45° | Steel | 8 mm | -4 | n/a | Male UPTC | Hose Products Division | 8 mm | Male UPTC | Elbow 45° | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | n/a | n/a | n/a | 1/4 inch | Steel | ||
| 1FU43-12-12 | 36 in stock | 1396 in stock | $33.17/each | Straight | Steel | 3/4" | -12 | Metric | Female BSP Parallel Pipe - Swivel (30° Flare) | Hose Products Division | 3/4 | Female BSP Parallel Pipe - Swivel - (30° Flare) | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | 3/4"-14 inch Thread | n/a | n/a | -12 (Size) | Steel | ||
| 1FU43-16-16 | 4 in stock | 173 in stock | $65.24/each | Straight | Steel | 1" | -16 | Metric | Female BSP Parallel Pipe - Swivel (30° Flare) | Hose Products Division | 1 | Female BSP Parallel Pipe - Swivel - (30° Flare) | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | 1"-11 inch Thread | n/a | n/a | -16 (Size) | Steel | ||
| 1FU43-20-20 | 9 in stock | 23 in stock | $139.42/each | Straight | Steel | 1-1/4" | -20 | Metric | Female BSP Parallel Pipe - Swivel (30° Flare) | Hose Products Division | 1-1/4 inch | Female BSP Parallel Pipe - Swivel - (30° Flare) | Straight | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | n/a | n/a | 1-1/4"-11 inch Thread | 50 mm | n/a | 1-1/4 inch | Steel |
