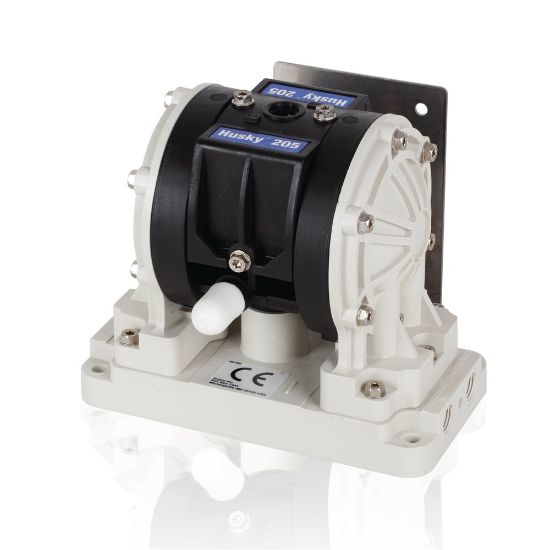

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D150A6

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D150A6

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Connection Type	Threaded	Type	Pneumatic
Weight	2.8 lb	Maximum Flow Rate	5 GPM
Material	PVDF	Series	205
Fluid Outlet Thread Type	NPT;BSPT	Fluid Inlet Size	1/4 Inch
Fluid Outlet Thread Gender	Female	Model	Husky
Diaphragm Material	Santoprene	Air Inlet Thread Type	NPT;BSP
Fluid Outlet Size	1/4 Inch	Fluid Inlet Thread Type	NPT;BSPT
Maximum Cycle Rate	320 CPM	Maximum Operating Temperature	180 deg F
Air Inlet Size	1/4 Inch	Air Inlet Thread Gender	Female
Diaphragm Compatible Material	Santoprene	Fluid Inlet Thread Gender	Female
Air Exhaust Port Thread Type	NPT;BSP	Center Section Material	Polypropylene
Maximum Solid Size	0.06 Inch	Air Exhaust Port Size	1/4 Inch
Maximum Air Consumption	9 SCFM	Manifold Configuration	End Port
