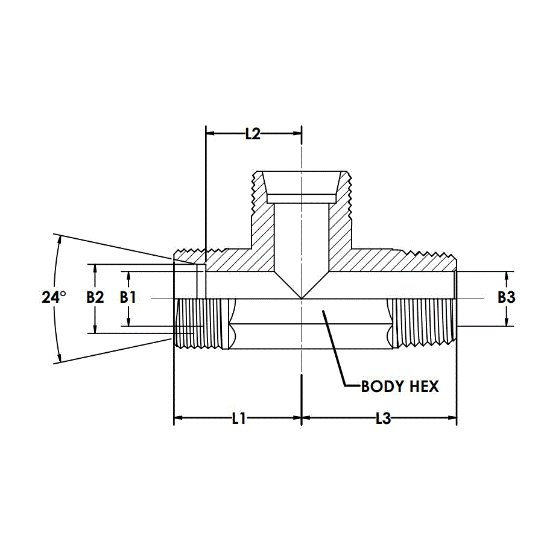

D2605-S08-04-S08-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D2605-S08-04-S08-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBT-MP-MBT (Body Only)
Weight	0.156 LB	Series	D2605-X
Style	DIN Fitting	Thread Size 2	1/4-18
Standard	Prop-65 Warning	Max. Dynamic Pressure	630 Bar
Connection Specification 1	DIN 2353, ISO 8434-1	Connection Specification 2	ANSI B1.20.1
Connection Specification 3	DIN 2353, ISO 8434-1	End Type 2	Male NPT
Thread Size 1	M16 x 1.5	Tube Size 3	8 MM
End Type 1	Male Metric 24 Degree DIN Seat	Thread ID	5 MM
End Type 3	Male Metric 24 Degree DIN Seat	Tube Size 1	8 MM
Raw Material Type	Stainless Steel Forging	Thread Size 3	M16 x 1.5
Body Hex	14 MM
